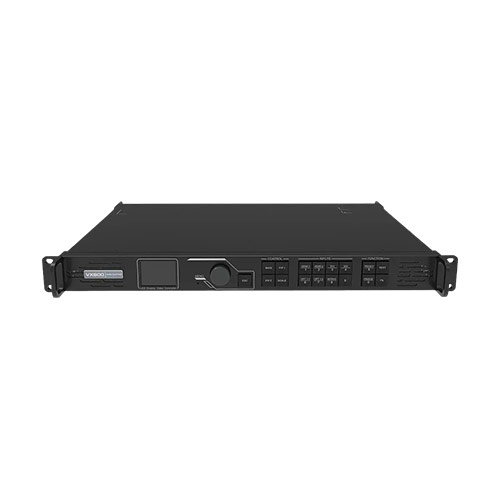

What Is the Novastar VX600?
The Novastar VX600 is a high-performance control unit integrating both video processing and video control functions. It enables adjustment of various parameters for video playback on LED screens, including display windows, image color, and brightness. Equipped with multiple input and output ports, its extensive connectivity ensures compatibility with any required peripheral devices.
Novastar VX600 specifications it can drive LED screens up to 10240 pixels wide × 8192 pixels high. Not only is its driving capability impressive, but the Novastar VX600 price typically doesn’t exceed $1600, helping you save on project costs.
It excels at processing high resolution LED displays, delivering superior image quality that enhances the viewer experience. Thanks to its outstanding value, the Novastar VX600 is highly popular in the mid-to-high-end LED display controller market.
Three Operating Modes of the Novastar VX600
Video Controller ModeIn Video Controller Mode, the Novastar VX600 outputs content via its HDMI port. Under this mode, avoid adjusting the HDMI port’s parameter settings arbitrarily, as this may compromise the quality of the displayed images on the LED screen.
Fiber Converter ModeFiber Converter Mode features two OPT ports: OPT 1 supports flexible input/output switching, while OPT 2 is dedicated to output. OPT 2 can replicate and back up signals from six or more ports.
Bypass ModeIn Bypass Mode, the Novastar VX600 supports pixel-to-pixel image processing and output. However, only the main window screen can be displayed on the LED display in this mode; all picture-in-picture windows are disabled.
Novastar VX600 Features
The Novastar VX600 employs infinite output scaling technology for high-resolution LED screens, supporting pixel-to-pixel level management. This enhances the visual quality of already sharp and high-quality LED displays.
The Novastar VX600 allows you to preset 10 custom configurations. You can adjust detailed parameter settings and save them. This enables one-click access to customized presets during LED screen playback, reducing adjustment time.
The Novastar VX600 possesses powerful image processing and transmission capabilities, enabling simultaneous reception and output of content sources. Latency error can be kept below 1 millisecond, resulting in virtually zero delay visible to the naked eye.
The Novastar VX600 performs pixel-level brightness and color calibration for every LED on the display. This granular calibration ensures exceptional uniformity and consistency across the entire screen.
The Novastar VX600 supports three-window playback on LED screens. Picture-in-picture window sizes can be freely cropped, and window positions can be freely adjusted, greatly enriching the display content of LED screens.
The Novastar VX600 supports multiple input and output ports including 3G-SDI, HDMI, DVI, OPT, Ethernet, and USB. It is compatible with all your input and output devices.
Novastar VX600 Can Be Configured via Front-Panel Menus and Buttons
The front panel features an LCD for showing device menus, messages, and status. To the right of the LCD interface are control buttons and a series of shortcut keys.
Rotate the knob to navigate menu items requiring adjustment, such as LED screen brightness, picture-in-picture window settings, and input configurations. Refer to the Novastar VX600 manual for specific adjustable parameters. Use the knob to cycle through options, press it to confirm selections, and press the ESC button to return to the previous menu level.
Additionally, the front panel of the VX600 Novastar supports configuring preset information, restoring factory settings, communication settings, and other advanced configurations. This allows comprehensive adjustment of the LED display without connecting to a PC. Of course, if you prefer PC-based adjustments, the Novastar VX600 also supports PC connectivity.
If you have questions about whether the Novastar VX600 is suitable for your LED display, click the button below to contact JYLED. Our professional engineers will assist you.
Novastar VX600 Is Compatible with Novastar's Powerful Software Solutions: Nova LCT and V-Can
Novastar offers two renowned software tools: Nova LCT and V-Can. These robust applications enable more granular management of your LED display when installed alongside the VX600.
When paired with the software, the VX600 Novastar offers more data options for parameter settings and finer adjustments for LED screen playback. For picture-in-picture playback settings—adjusting window positions, cropping sizes, image parameters, etc.—it provides extensive operational flexibility and simpler, more convenient controls.
Additional features include Ethernet port backup for transmitted content, preset account management, and real-time firmware updates. Both Nova LCT and V-Can enhance your management capabilities. Purchasing the Novastar VX600 means acquiring not only a high-performance controller, but also Novastar’s robust software and services.
Common Application Scenarios for Novastar VX600
The Novastar VX600 controls large LED display arrays in shopping malls, enabling simultaneous promotion of up to three products or events.
The Novastar VX600 adjusts outdoor advertising display parameters to enhance brightness, contrast, and overall visibility, boosting advertising effectiveness.
Monitoring rooms typically require multiple display windows for different surveillance feeds. The Novastar VX600 enables a single screen to show multiple windows, reducing display procurement costs.
Supporting diverse input/output ports, the Novastar VX600 ensures seamless connection and display of presentation files from every speaker on the LED screen.
Novastar VX600 Case show
- Case show
The size of the LED wall controllable by the Novastar VX600 is related to the pixel pitch. The larger the pixel pitch, the larger the controllable LED wall size, and vice versa.
The Novastar VX600 supports multiple input resolutions including 2560×960, 1920×1200, and 2048×1152, among others. For specific requirements, please consult the Novastar VX600 manual to confirm compatibility.
The Novastar VX600 features 6× Ethernet ports, 1× HDMI 1.3, 1× HDMI 1.3 LOOP, 1× DVI LOOP, 1× 3G-SDI LOOP, and 2× OPT ports.
The Novastar VX600 features 1× 3G-SDI, 2× HDMI 1.3, 1× DVI, 1× OPT, and other input ports.
The Novastar VX600 supports a maximum resolution of 3840×2160 pixels. For large-sized LED displays with high pixel density, the Novastar VX600 is an ideal controller.
A single Ethernet port on the Novastar VX600 supports processing up to 650,000 pixels, delivering remarkably high processing performance.
The Novastar VX600 typically defaults to a frame rate of 60Hz. However, you can adjust the frame rate between 23.98Hz and 120Hz as needed. For specific frame rate adjustment details, please refer to the Novastar VX600 manual.
There are two primary methods to change the resolution of the Novastar VX600. One involves directly accessing the resolution settings interface and adjusting the width and height using the rotary knob. The other method involves modifying the pixel count through the settings to alter the resolution.
The Novastar VX600 typically costs around $1300 to $1500 USD. Customs clearance fees vary significantly by country, so the total purchase cost should be calculated based on shipping and import duties at the time of purchase.
Other Novastar Products Similar to the Novastar VX600
Novastar MCTRL300 LED Video ControllerThe Novastar MCTRL300 features two Ethernet output ports and supports video control only, offering simpler functionality. Its individual price is typically around $300, making it suitable for lower-performance, smaller LED displays.
Novastar VX400 LED Video Processor and ControllerThe Novastar VX400 features 4 Ethernet output ports, supports dual-window playback for LED screens, and can drive up to 2.6 million pixels. It is an ideal choice for mid-to-low-end LED displays.
Novastar VX1000 LED Video Processor and ControllerThe Novastar VX1000 features 10 output Ethernet ports, supporting simultaneous playback across three windows on LED screens. It can drive up to 6.5 million pixels with remarkable processing power, making it highly suitable for high-end LED displays.
![Novastar MX20 LED Video Processor And Controller [COEX]](https://www.szjy-led.com/wp-content/uploads/2025/09/Novastar-MX20-LED-Video-Processor-and-Controller-COEX.jpg)
The Novastar MX20 features 20 Ethernet output ports and 4 10G fiber ports. With 14-channel color correction and a maximum frame rate of 240Hz, it handles ultra-high-end XR LED screens.
