Types and basic parameters of P4 LED modules

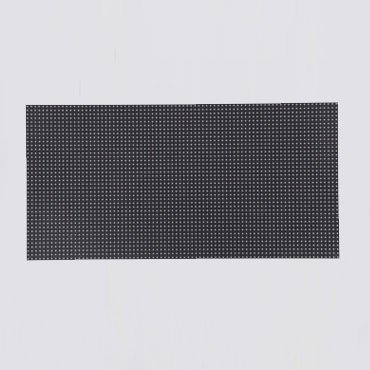

A non-waterproof full-color indoor LED module with high definition and perfect display quality, its basic parameters are as follows:
- Size: 320mm x 160mm
- Brightness: 800-1000 (nits)
- Waterproof level: IP54
- Package technology: SMD 2121

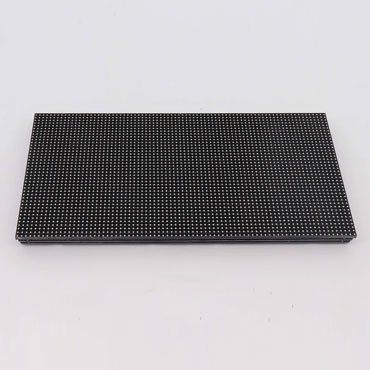

A waterproof LED module for outdoor use with high protection and high brightness, its basic parameters are as follows:
- Size: 320mm x 160mm
- Brightness: 5000-5500 (nits)
- Waterproof level: IP65
- Package technology: SMD1921
A flexible LED module that can be bent to a certain curvature, can have the ability to create a variety of irregular shapes, its basic parameters are as follows:
- Size: 256mm x 128mm or 240mm x 120mm
- Brightness: 600-1000 (nits)
- Waterproof rating: IP54
- Package technology: SMD1921
A bendable LED module for outdoor use that can create a variety of irregular shapes, but also at the same time has a very strong protective ability, its basic parameters are as follows:
- Size: 320mm x 160mm
- Brightness: 4500-5500 (nits)
- Waterproof level: IP65
- Package technology: SMD1921
P4 LED module features
All types of P4 LED modules support high refresh rate of 1920Hz (3840Hz optional), which can bring high definition and stable display effect to the screen.
The horizontal and vertical viewing angles of P4 LED modules reach 160°. It means that no matter from which angle we view the screen, we can get the same effect.
The LED lamp beads that make up the P4 LED module have a lifespan of up to 100,000 hours, which means that they can last for about 11 years even if they are used 24 hours a day.
Before LED P4 modules leave the factory, we will carry out detailed testing on the LED modules, which is to ensure that each piece of LED modules can get uniform brightness.
P4 LED module adopts 3-in-1 SMD technology, which is able to create stunning images for both indoor and outdoor use scenarios with the addition of high refresh rate.
JYLED has done 12 international standard tests on P4 LED modules, such as waterproof performance, color effect, working temperature and humidity, etc. to ensure full compliance with international standards.
P4 LED module uses self-luminous LED beads, which not only consumes very low energy, but is also friendly to the environment, in line with the concept of sustainable development.
In the outdoor type of P4 LED module, the protection ability has been further strengthened to realize the situation of full waterproof, so even in the rainy day, there is no need to worry about the LED module problems.
Two applications of P4 LED modules
P4 LED Display
P4 LED display is an LED display that is spliced with P4 LED modules. Because it is very cost-effective, it is widely used in our life. Scenes like hotel lobby, studio, stadium, shopping mall, etc. can see the figure of P4 LED display.
P4 LED Wall
P4 LED wall selects regular P4 LED module or flexible P4 LED module to be spliced depending on the flatness of the wall. After splicing, it can be used as a dynamic video wall. Commonly used in stage background, press conference or wedding scene and other scenes.
