Have you ever seen an LED display in a shopping mall that curves like the letter “S”? And were you amazed by its incredibly three-dimensional and stunning visuals?
If you’re looking for an S shaped LED display and want to learn more about this type of screen, you won’t want to miss this article. This article will provide a detailed overview of the advantages and core technologies of S shaped LED displays, helping you quickly implement your ideal screen procurement plan.
What Is an S Shaped LED Display?
An S shaped LED display is a creative LED screen with an “S” curved profile. Its curvature and direction are not fixed but can be customized based on the on-site environment and specific requirements.
Unlike traditional LED screens, S shaped LED displays can bring more striking visual impact, more aesthetically pleasing presentation effects, and a wider viewing angle to the venue. As a result, S shaped LED displays have become the ideal choice for various event spaces, including commercial venues, exhibitions, and performances.
What Are the Advantages of S Shaped LED Displays?
Supports Multiple Pixel Pitch Options
The screens support pixel pitch options ranging from 1.25 to 6 mm. The smaller the pixel pitch, the more detailed and vivid the image will be, though the purchase cost of the display will also be higher.
Depending on your actual budget, you can choose a screen with a smaller pixel pitch for clearer, sharper images; or opt for a more cost-effective display with a larger pixel pitch, which can still meet your needs thanks to its unique shape.
Strong Visual Impact
The curved panels of S shaped LED displays create multiple convex and concave display areas. The convex areas deliver an incredibly stunning 3D visual effect to viewers, while the concave areas provide an extremely immersive viewing experience.
Both the convex and concave areas of the display provide viewers with unique visual experiences and leave a profound impression on customers, thereby enhancing the marketing effectiveness of the screen’s content, making it an excellent tool for advertising.
Spatial Adaptability Through Modular Design
The display features a modular design, consisting of multiple uniform LED modules assembled. You can select the size, quantity, and other specifications of the modules based on the installation environment’s requirements, ensuring the final display integrates seamlessly into its surroundings.
This prevents the screen from being too large, which would make the space feel cramped, or too small, which would result in unclear content.
Wide Viewing Angle
Both the inner and outer curved panels of the S shaped LED display expand the audience’s viewing angle to a significant degree, far exceeding the 160° viewing angle of traditional LED screens. This allows the screen’s content to reach a wider audience, ensuring more viewers can see the information clearly.
Improved Space Utilization

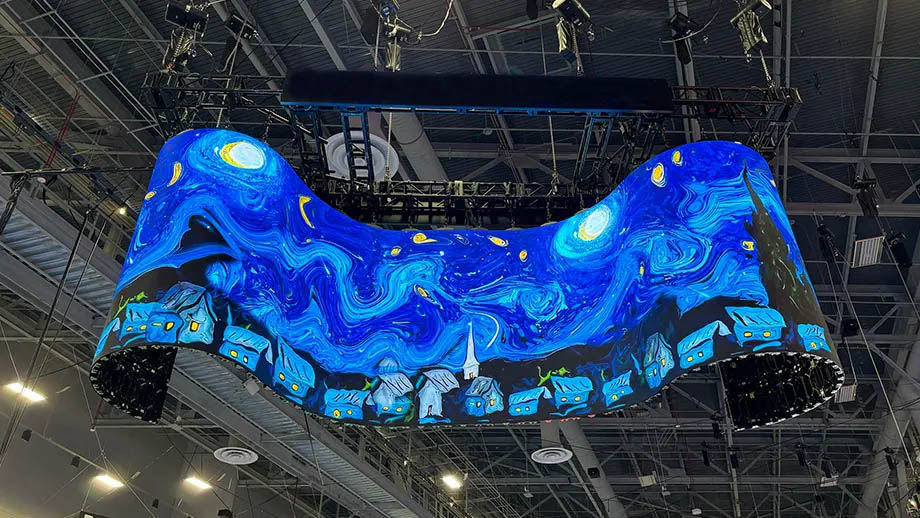

The display supports various installation methods, including suspended and floor-standing configurations. In particular, suspending the screen from the ceiling saves floor space, thereby further improving your space utilization.
What Technical Solutions Are Required for S Shaped LED Displays?
S shaped LED displays require specific technologies to ensure exceptional display quality, such as:
- Image Processing Technology: Due to the unique characteristics of S shaped LED display panels, specialized image processing technology is needed to adjust the displayed content so that images better adapt to the screen’s shape. This ensures the integrity and visual continuity of the content, thereby maximizing the display’s visual impact.
- Flexible LED Modules: Curved screens require flexible LED modules for installation. These flexible LED modules can be bent within a certain curvature range without damage, and the curvature does not alter the image’s aspect ratio.

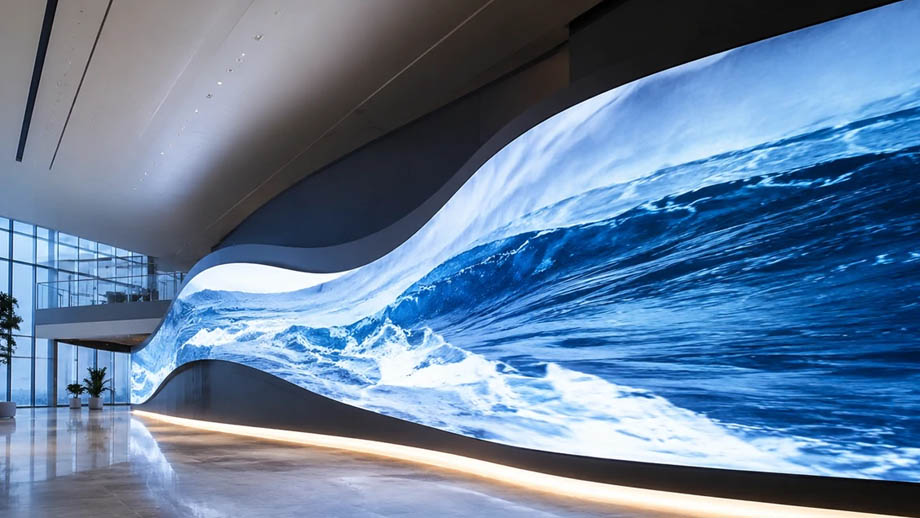

- Seamless Splicing Technology: LED modules can be installed to conform to various curved surfaces, and the seam between different modules after installation can be less than 0.01 mm. Viewers will not notice any obvious gaps, black borders, or other phenomena that could affect the viewing experience, resulting in a highly cohesive screen.
How to Choose the Right S shaped LED Display?
If you are planning to deploy an S shaped LED display but are unsure how to select the appropriate screen specifications, we recommend considering the following factors:
Resolution and Viewing Distance
The screen’s resolution determines the clarity of the final image, and it is influenced by specifications such as screen size and pixel pitch. You should calculate the optimal screen size based on the venue’s dimensions, the audience’s viewing distance, and the resolution to ensure it has the appropriate resolution.
Screen Curvature Design
The greater the curvature of an S shaped LED display, the more visually striking the image will be. However, it’s important to note that the curvature must match the installation curvature of the flexible LED displays; otherwise, the modules may be damaged. Therefore, you need to calculate and design a reasonable screen installation curvature in advance.
Installation Environment and Method
Selecting an appropriate installation method based on the installation environment can reduce installation costs, effectively improve space utilization, and maximize your return on investment.
Contact JYLED for Custom Solutions
If you’d prefer not to spend too much time calculating the dimensions, pixel pitch, curvature, and other specifications of an S shaped LED display, you can contact us directly through JYLED’s consultation portal.
Our sales specialists can develop a suitable screen procurement plan for you within 24 hours based on your requirements, budget, installation site, event scale, and other relevant information.
Case Studies of S Shaped LED Displays Installed by JYLED

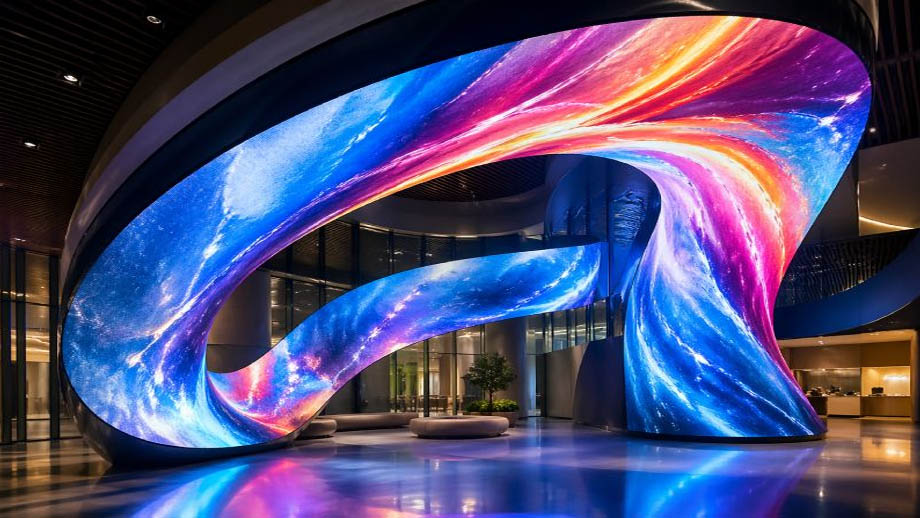

S Shaped LED Display at the Shenzhen Art Exhibition
The S shaped LED display was used to showcase digital art, adding a modern touch to the exhibition venue and delivering creative, visually striking imagery to the audience.
- Screen Model: P1.25 LED Screen
- Screen Size: 65 ㎡
- Widest Point: 6.9 meters
- Screen Height at Highest Point: 2.7 meters
- Screen Brightness: 500 – 900 nits
- Installation Method: Floor standing

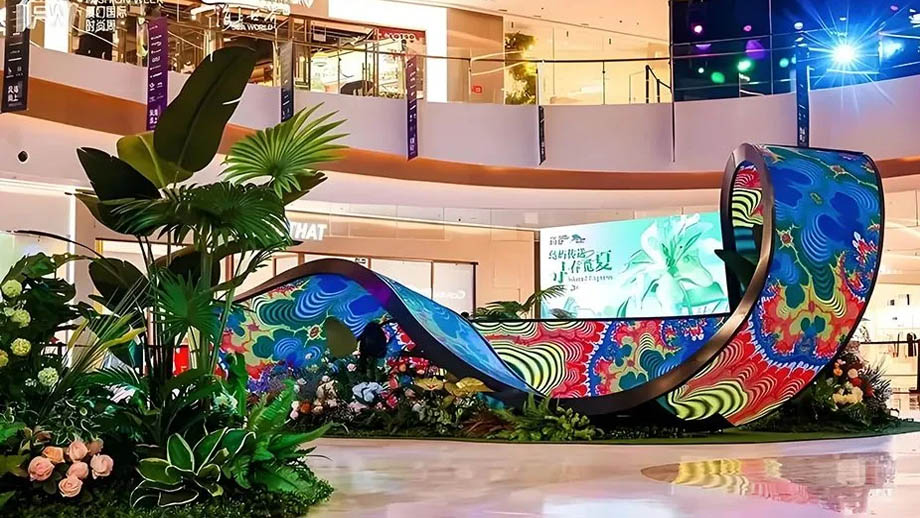

S Shaped LED Display for Shopping Malls
Installing an S shaped LED display in a shopping mall serves as a billboard for promoting product advertisements and customer reviews, as well as occasional discount promotions, displaying corresponding discounted prices to attract customers to make purchases.
- Screen Model: P2 LED Screen
- Screen Size: 54 ㎡
- Screen Width: 9.4 meters
- Screen Height: 2.5 meters
- Screen Brightness: 500 – 1,000 nits
- Installation Method: Suspended
S Shaped LED Display Installed in an Exhibition Hall
The S shaped LED display installed in the exhibition hall can showcase images and descriptions of important exhibits, continuously rotating the content to allow visitors to quickly grasp information about multiple exhibits. The S shaped screen also enhances the exhibition hall’s modern atmosphere and interior aesthetics, leaving a better impression on visitors.
- Screen Model: P1.5 LED Screen
- Screen Size: 50 ㎡
- Widest Point: 5 meters
- Highest Point: 2.3 meters
- Screen Brightness: 500 – 850 nits
- Installation Method: Floor standing

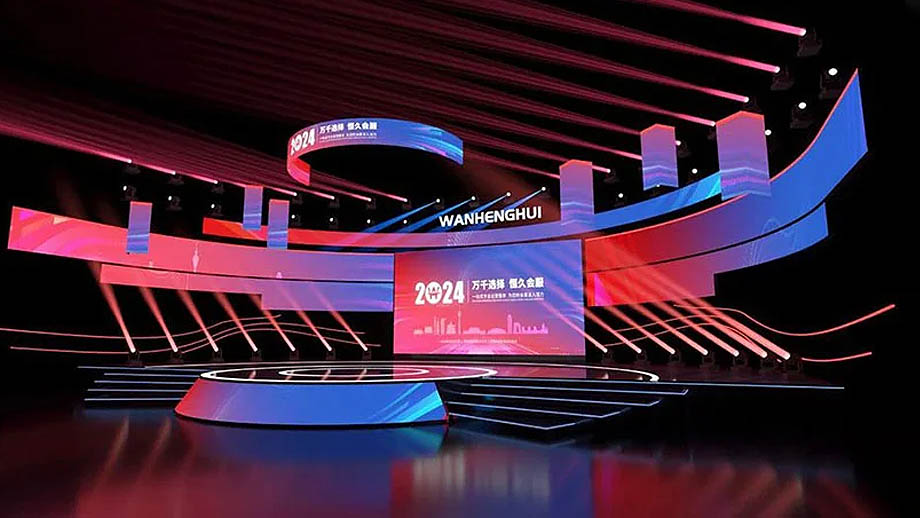

S Shaped LED Backdrop for Concerts
Installing an S shaped LED display at a concert serves as a stage backdrop, providing the event venue with a dynamic, immersive background that offers the audience a visual experience beyond just the auditory, thereby enriching their concert experience.
- Screen Model: P3.91 LED Screen
- Screen Size: 89 ㎡
- Widest Point of Screen: 15 meters
- Highest Point of Screen: 4 meters
- Screen Brightness: 900 – 1,100 nits
- Installation Method: Suspended
S Shaped LED Display in Public Spaces
Installing an S shaped LED display in public spaces can serve as a landmark structure, broadcasting city promotional videos, public service announcements, and other content to promote urban culture and enhance the city’s public image.
- Screen Model: P4 LED Screen
- Screen Size: 44 ㎡
- Widest Point: 6 meters
- Highest Point: 4 meters
- Screen Brightness: 3,500 – 5,500 nits
- Installation Method: Floor standing
Summary Table of JYLED’s S Shaped LED Display Installation Projects
| Project Name | Model | Size | Widest Side | Tallest Side | Brightness | Installation Method |
| Shenzhen Art Exhibition S Shaped LED Display | P1.25 LED Screen | 65 ㎡ | 6.9 meters | 2.7 meters | 500 – 900 nits | Floor standing |
| Shopping Mall S Shaped LED Display | P2 LED Screen | 54 ㎡ | 9.4 meters | 2.5 meters | 500 – 1,000 nits | Suspended |
| S Shaped LED Display at Exhibition Hall | P1.5 LED Screen | 50 ㎡ | 5 meters | 2.3 meters | 500 – 850 nits | Floor standing |
| S Shaped LED Backdrop for Concert | P3.91 LED Screen | 89 ㎡ | 15 meters | 4 meters | 900 – 1,100 nits | Suspended |
| S shaped LED Display for Public Spaces | P4 LED Screen | 44 ㎡ | 6 meters | 4 meters | 3,500 – 5,500 nits | Floor standing |
FAQ
Do S Shaped LED Displays Consume a Lot of Energy?
S shaped LED displays do not consume a lot of energy because they essentially still rely on LED lamps that emit light when powered to form images. The percentage of electrical energy converted into light by LED lamps can reach 50% – 80%, and this high energy conversion efficiency results in extremely low energy consumption.
Do S Shaped LED Displays Support Double Side Display?
Yes. To ensure the screen’s unique visual effects, the vast majority of S shaped LED displays utilize double side display.
What Is the Market Price of an S Shaped LED Display?
The market price of an S shaped LED display depends on a range of factors, including the screen size, pixel pitch, brightness, and protection rating. If you’d like to know the actual purchase price, please contact JYLED through our inquiry form.
Do S Shaped LED Displays Support Front Maintenance or Rear Maintenance?
Generally, S shaped LED displays support front maintenance. This is because they are installed using flexible LED modules, which typically support front maintenance. Front maintenance is more convenient and efficient and does not require reserving space for rear access.
Are S Shaped LED Displays Always Better Than Traditional LED Screens?
You’ll need to consider your specific usage environment and the scale of your event. For simpler event scenarios, there’s no need to incur the high costs of deploying an S shaped LED display; in such cases, a traditional LED screen would be a more suitable choice.
Summary
The S shaped LED display is a uniquely designed curved LED screen that quickly captures the attention of the live audience and leaves a lasting impression through its immersive visuals.
If you have a need for creative LED screen installations, please contact JYLED to learn more about uniquely shaped LED screens.
