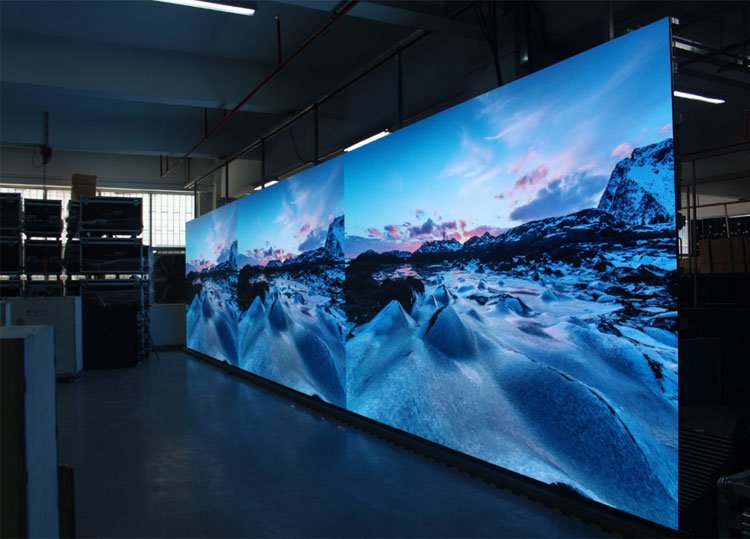

Modular display system is usually applied in LED and LCD. Its appearance allows the display to better change the size and dimensions, and provides us with a different visual feast on the big screen. For this reason, this article will be about the modular display system to introduce to you, so that you can learn more about the modular display system content.
What is modular display system?
Modular display system is a complete product or system according to the function and the required size to be divided into the appropriate square size, that is, we often say modular design. This modular display system is mostly used in LED displays and LCDs.
What are the modular display types?
Pop-up Display
Pop-up displays in the LED display industry will also be called wave screens. The reason for this is that its display screen is divided into several LED modules, which are all independent individuals, and each LED module can be retracted back and forth according to the system settings.
When viewed from the front, it will undulate and change like a wave, which can catch the audience’s eyes and bring them a sense of novelty.
Modular booths for trade shows
Modular booths for trade shows allow for multi-faceted booth design. There are four main types of booth design: single-sided booth design, double-sided booth design, four-sided booth design and immersive booth design. Generally double-sided booth design and four-sided booth design are the most widely used designs.
This kind of modular booth design can largely attract the attention of visitors, which can promote the communication and exchange between traders and further guide visitors to spend money.
Modular video walls for dynamic digital content
Modular video walls for dynamic digital content are single-sided and have large screen sizes that fit well on the walls and blend in with the stage or surrounding scene. Even if the audience is far away from the modular video wall, but also be able to see clearly the content of the display, to bring the audience a unique viewing experience.
Benefits of modular display systems in displays
Flexible design, adaptable to different spaces
For LED display, modular display system can effectively solve the contradiction between the manufacturer and the consumer on the size of LED display, can better enable the manufacturer to design flexibly, manufacturing close to the consumer’s ideal size, so as to adapt to different places and spaces.
For example: when consumers need a length of 1185mm, width of 285mm LED display, and the use of 320mm * 160mm module size, the manufacturer can be calculated to provide consumers with the actual LED display splicing size, specifically 1280mm * 320mm, that is, in the length of the placement of four pieces of 320mm * 160mm module, in the width of the placement of two pieces of the same type of module. Width to place 2 modules of the same type.
Seamless splicing and intelligent integration
Modular display system can also realize the seamless splicing technology of the display. This splicing technology can make it impossible for the naked eye to detect the gaps between modules and modules in the LED display, making the picture presented by the LED display more complete and bringing more perfect display effects to the audience.
It can also be connected to the computer, synchronized playback of real-time dynamic images, and with some audio equipment and lighting equipment for supporting the use. The purpose of doing this is to make the LED display screen more colorful, more comfortable switching between different images, can give the audience a consistent audio-visual immersive experience.
No need to completely replace the display
Not having to completely change is one of the major advantages of having a modular display system.
As this kind of display is composed of several modules and cabinets, so when the LED display is playing the picture, if part of the picture can not be displayed, then only need to replace the faulty module on the line, do not need to carry out a complete replacement of the LED display, for consumers to save costs.
Easy transportation and storage
This modular display system can bring great convenience for the transportation and storage of the display. When consumers need a large format LED display, the manufacturer can divide the large format LED display into several LED display modules, and then by several cabinets to several LED modules for assembly and splicing, and finally into the wooden box or air box.
This kind of packaging, can make effective use of space, convenient for transportation personnel in the air or sea for transportation, compared with the previous large format display transportation, greatly reducing the logistics cost. Moreover, the cabinets of the rental series will be designed in a way that is easy for the installers to pick up.
Advanced Customization and Artistic Design
Because the display of modular display system can be flexible size splicing, so it can also be customized for some people who need advanced customization and artistic design.
In terms of advanced customization, the LED display can be made to fit the exact size given by the consumer. In terms of artistic design, according to the consumer’s innovative ideas on the shape of the LED display, such as: cylinder LED display, round LED display and other irregular LED display.
Factors affecting the price of modular display system
Module Type
The module type is determined by the pixel pitch in the module. When the pixel pitch in the module is a certain number, it will be known in the form of “P + number + LED module”. For example, a module with a pixel pitch of 4mm would be called a P4 LED module. Pixel pitch of 2 mm module, it will be called P2 LED module.
The price of a spliced LED display is different for different module types. When the pixel pitch in the module is smaller, the more complicated the manufacturing process will be and the more expensive it will be. On the contrary, the larger the pixel pitch in the module, the more mature its manufacturing process will be, the price will be cheaper. For example, the pixel pitch of a P2 module is smaller than that of a P4 module, and in terms of price, an LED display composed of P2 modules will be more expensive.
Screen size
If the module size of the display system is the same, then the relationship between the screen size and price will follow the following principles.
The larger the screen size of the LED display, the greater the number of LED modules required, the more expensive. On the contrary, the smaller the screen size of the LED display, the fewer the number of LED modules required, the cheaper the price. The specific situation is as follows.
Two different screen sizes of LED display screen are used 320mm * 160mm module size, then through the calculation can be known, 1280mm * 480mm LED display screen needs 12 modules, while 1920mm * 480mm LED display screen needs 18 modules. So the price of 1280mm*480mm LED display will be lower than 1920mm*480mm LED display.
Packaging for Rental and Fixed Installation
Display with modular display system can be divided into rental series and fixed installation series for packaging.
Rental series LED display will be transported in an air box, which has wheels underneath and can be easily handled by the transportation personnel. This kind of air box adopts the strong shell and soft internal design, can effectively protect the LED display, so, in the price will be more expensive.
Fixed installation LED display will use wooden box for transportation, in which the wooden box can be made according to the cabinet of the LED display into different sizes for placement, thus saving space.
In the internal foam sponge will be used to protect the LED display, but in appearance will be relatively simple, its wood materials will be relatively cheap, so the price of wooden box will be lower than the price of the air box.
Transportation method
If your money is very rich, then you can choose air transportation, which can save time, so that the LED display can be quickly sent to your location. If you want to be economical, then you can choose sea transportation, which is much cheaper than air transportation.
Application of Modular Display System
Rental Series
- Singing and dancing activity party
- Various conferences
- Trade shows
- Sports Arena
- Opera Stage Performance
- Lecture halls
- High-end entertainment venues
Fixed Installation Series
- Large billboards
- Commercial places
- Office Building
- Public Service Places
- Television Station
- Construction Market
- Auction houses
Conclusion
Through the reading of this article, I believe that I have gained an in-depth understanding of modular display systems.
When you need to make a choice of a display that has a modular display system, you will have to consider the factors that affect the price of modular display systems so that you can make a choice based on your own conditions and needs.
