Novastar VX1000 Pro: All-in-One Video Controller
JYLED’s best-selling product is an all-in-one controller developed by Novastar. This controller offers comprehensive video processing and control capabilities, supporting three operating modes: Video Controller, Fiber Converter, and ByPass. Users can flexibly switch modes based on application requirements.
Additionally, the VX1000 Pro boasts powerful video signal reception and processing capabilities, handling multiple video signal inputs. Equipped with rich functional features, it delivers exceptional image display for LED screens.
Multiple Operation Methods of Novastar VX1000 Pro
The Novastar VX1000 Pro processor offers multiple operation methods that complement each other, significantly enhancing the flexibility of LED display operation and control. Below is a brief introduction to the four operation methods. For specific operational procedures, please consult JYLED professionals.

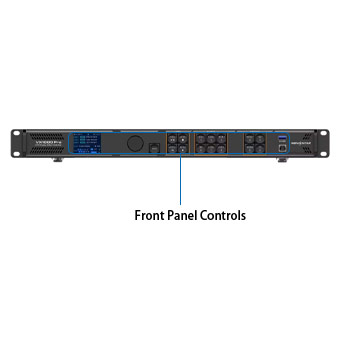

Novastar has designed the VX1000 Pro front panel with multiple control buttons including a rotary knob, return key, layer selection, input source selection, and function keys. These buttons enable direct device control, offering convenient operation.
The Unico Control platform is an innovative, interactive device operation software. Supporting integration with multiple LED devices, it provides a unified control interface delivering an easy to use, intuitive, professional, efficient, and flexible control experience.
After connecting the Novastar VX1000 Pro to an LED display, Windows users can configure the control system, monitor, set up, and adjust the LED screen using the NovaLCT software.
The VICP application is a visualization control software developed for various fixed installation scenarios. It enables management and control of LED display systems, multimedia playback control systems, audio systems, and peripheral environmental devices.
Key Features of Novastar VX1000 Pro

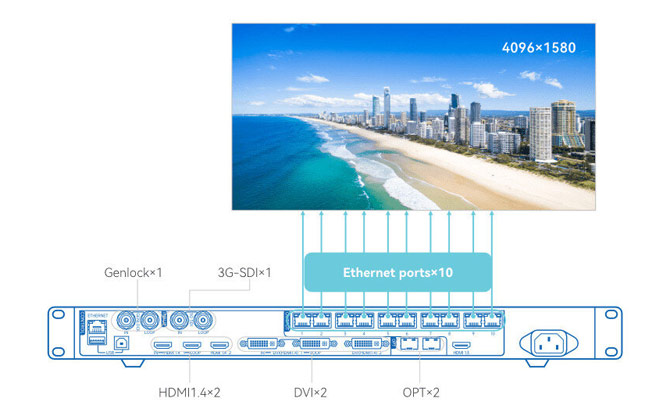

Equipped with ten Gigabit Ethernet ports, the Novastar VX1000 Pro boasts an exceptional pixel load capacity of up to 6.5 million pixels. It supports a maximum output width of 10,240 pixels and height of 8,192 pixels, enabling it to drive ultra-wide and ultra-tall large scale LED displays.
The Novastar VX1000 Pro sold by JYLED features a complete input interface configuration, including HDMI 2.0, HDMI 1.3, 10G fiber optic ports, 3G-SDI, and USB 3.0 input interfaces, providing flexible input source options for LED displays.
For layer display, the Novastar VX1000 Pro supports 6×2K×1K layer resources. Layer size, position, priority, and aspect ratio can be adjusted as needed, enabling LED displays to excel in complex visual designs.
When enabling low latency mode in ByPass operation, the Novastar VX1000 Pro achieves zero delay input/output for your LED display equipment, delivering precise, tear free visuals with zero latency.
The Novastar VX1000 Pro utilizes either internal input sources or external GENLOCK as synchronization signals for output. Both methods ensure synchronized display output across cascaded devices.
The EDID files of the Novastar VX1000 Pro enable accurate testing and troubleshooting, clearer resolutions, and video setting adjustments, eliminating many common issues encountered when transmitting video and audio in different ways.
Novastar VX1000 Pro: Convenient Preset Saving and Loading
To deliver more flexible and convenient configuration capabilities, the Novastar VX1000 Pro offers exceptionally easy preset saving and loading, primarily reflected in the following aspects.
This Novastar VX1000 Pro from JYLED supports up to 256 user defined presets. The abundance of presets provides richer content display options and more backup choices for LED displays, ensuring smoother display operations.
- Before Saving: Preview the layer layout saved in the preset to ensure completeness.
- During Use: Load presets with a single button press.
- After Saving: Modify presets. Saved modifications overwrite the original preset, or presets can be deleted.
The above outlines the preset functionality. As you use it, you’ll increasingly appreciate the convenience this feature offers, delivering a time saving and effortless operational experience.
Novastar VX1000 Pro Features Flexible Image Processing Capabilities
The Novastar VX1000 Pro boasts comprehensive and powerful image processing capabilities, providing multiple image processing functions dedicated to delivering the most perfect LED image display.
First, the Novastar VX1000 Pro incorporates SuperView III image processing technology, enabling seamless output scaling. You can scale input source images in three ways: full screen, pixel to pixel, and custom.
Second, the Novastar VX1000 Pro enables pixel level brightness and chromaticity calibration. When used with NovaLCT and NovaStar calibration software, it achieves precise calibration of individual LED color and brightness, effectively eliminating color and brightness deviations. It supports image display testing to deliver optimal picture quality.
Additionally, the Novastar VX1000 Pro supports output color management, allowing adjustments to brightness, saturation, contrast, and hue.
These features collectively demonstrate the VX1000 Pro’s comprehensive management of visual details, showcasing absolute professionalism and stable performance across diverse scenarios.

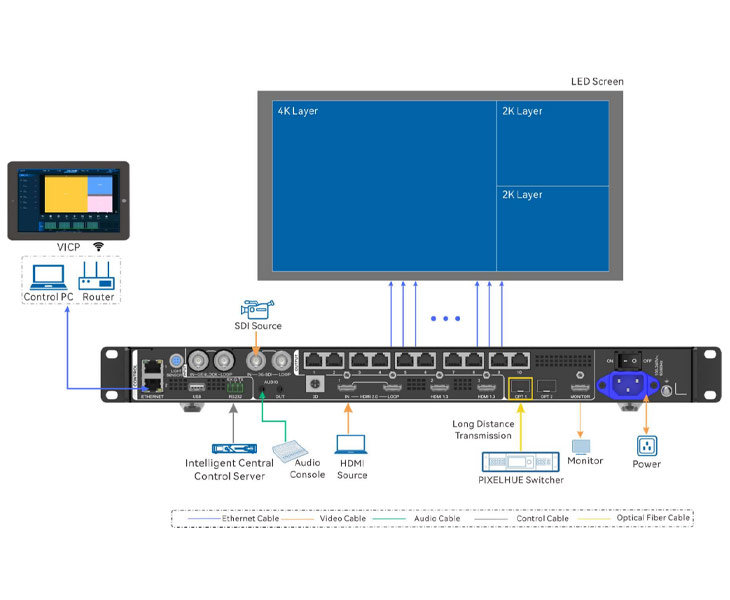

Introduction to the Novastar VX1000 Pro's 3D Functionality
The Novastar VX1000 Pro features a dedicated 3D output interface. This interface replaces the traditional method of connecting EMT200 3D transmitters to the device’s Ethernet port with a more convenient 3D interface.
Simply connect a third party 3D transmitter to the device’s 3D interface and use compatible 3D glasses to enjoy a stereoscopic and realistic visual experience.
However, note that enabling 3D functionality halves the device’s output capacity when the video source format is side by side or top and bottom. For detailed guidance on utilizing this feature, consult JYLED professionals. We provide comprehensive usage instructions to ensure an optimal experience.
Novastar VX1000 vs VX1000 Pro
JYLED’s popular Novastar VX1000 Pro is an upgraded version of the Novastar VX1000. While both offer high quality video processing and control, the Novastar VX1000 Pro features enhanced functionality. Key differences are outlined below.
In terms of resolution, the VX1000 supports a maximum input resolution of 3840×1080@60Hz or 3840×2160@30Hz, while the VX1000 Pro supports a maximum input resolution of 4096×2160@60Hz, offering higher resolution capabilities.
Regarding layer display capacity, the VX1000 supports only 3 layers, while JYLED’s VX1000 Pro expands this to support up to 6 layers.
Regarding latency, by enabling ByPass mode, the VX1000 achieves a minimum latency of 20 lines, while the VX1000 Pro achieves zero frame latency, enabling zero delay playback for LED displays.
For input interfaces, the VX1000 Pro features a plug and play USB 3.0 port, supporting playback of images or videos stored on USB drives. The VX1000 lacks this interface and does not support this functionality.
Regarding preset storage capacity, the VX1000 supports only 10 presets, while the VX1000 Pro can store up to 256 presets. This significantly broader preset capacity provides LED displays with richer and more comprehensive preset options.
Why Choose JYLED?
JYLED is China’s leading LED display supplier with over fifteen years of manufacturing experience, extensive industry knowledge, and professional technical expertise. If you plan to purchase a Novastar VX1000 Pro processor soon, consider JYLED—we offer the most comprehensive service.
Competitive Pricing
With over a decade of partnership with Novastar, JYLED offers unmatched competitive advantages, enabling you to acquire the Novastar VX1000 Pro processor at economical and affordable rates.
Product Training
Upon your request, JYLED’s technical specialists will provide relevant product training after your purchase of the Novastar VX1000 Pro processor, ensuring faster deployment and utilization.
Dedicated Technical Support Channel
A dedicated technical support channel will be activated upon your purchase of the Novastar VX1000 Pro processor from JYLED. For any product related issues encountered during use, JYLED will provide long term remote service support.
Project Deployment Assistance
JYLED’s professional engineering team will provide relevant case studies and solutions for the Novastar VX1000 Pro processor upon request, assisting with project deployment.
Novastar VX1000 Pro Application Scenarios
The Novastar VX1000 Pro delivers ultra-wide output with high resolution processing capabilities, perfectly matching the control demands of LED displays in stage performances. It delivers breathtaking and spectacular visual experiences for audiences.
In conference settings, the Novastar VX1000 Pro sold by JYLED supports multiple video signal inputs and layer overlay capabilities. Its flexibility adapts to diverse content display needs on conference LED screens, enhancing information dissemination efficiency during conferences.
The Novastar VX1000 Pro enables seamless switching between multiple signal sources and precise control for LED displays. Its stable output and power off data protection ensure reliable performance during extended live broadcasts.
Features like high resolution output, flexible control, precise image calibration, and robust video processing make JYLED’s Novastar VX1000 Pro the core control device for LED displays at trade shows, delivering outstanding performance for your exhibitions.
The Novastar VX1000 Pro’s exceptional performance shines in major sporting events. Its low latency ByPass mode enables zero delay image output, ensuring seamless synchronization between visuals and live action during competitions.
The Novastar VX1000 Pro delivers vibrant content display for commercial LED screens in shopping centers. It enhances promotional advertisements for products or food with vivid colors and rich details, effectively stimulating consumer spending.
Novastar VX1000 Pro's Power Off Data Preservation and Backup Design
The Novastar VX1000 Pro incorporates a highly stable and reliable power off data preservation and backup design. This feature effectively prevents data loss from unexpected power interruptions, ensuring stable data transmission.
The VX1000 Pro’s end to end backup functionality encompasses device to device backup, input source backup, Ethernet port to port backup, and OPT to Ethernet port backup.

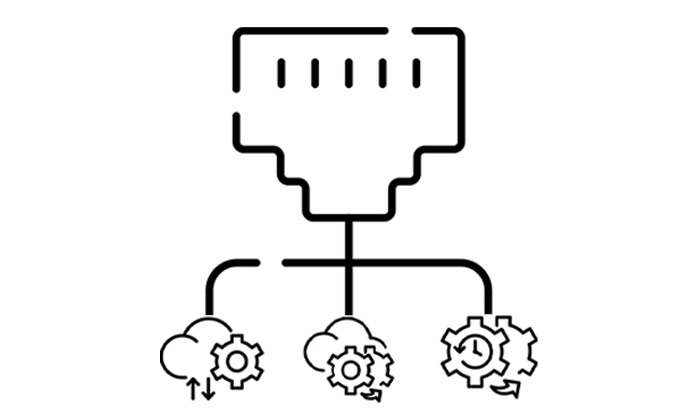

When performing Ethernet port backup tests, the VX1000 Pro allows you to verify prestored images, backup ports, and device functionality without physically disconnecting network cables.

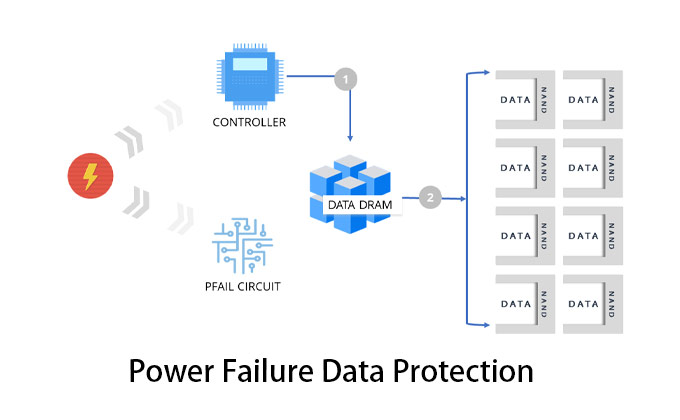

This Novastar VX1000 Pro from JYLED also provides power failure data protection. Whether your device shuts down normally or experiences an unexpected power outage, settings saved between devices will automatically restore upon reconnecting power.
These backup designs and power failure data protection deliver outstanding stability. Even under extreme high or low temperatures, the Novastar VX1000 Pro maintains exceptional stability around the clock.

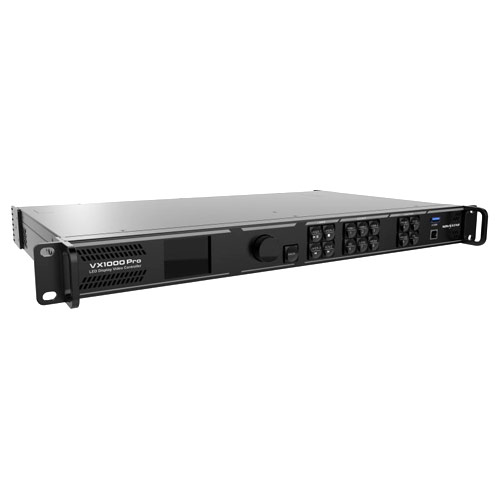

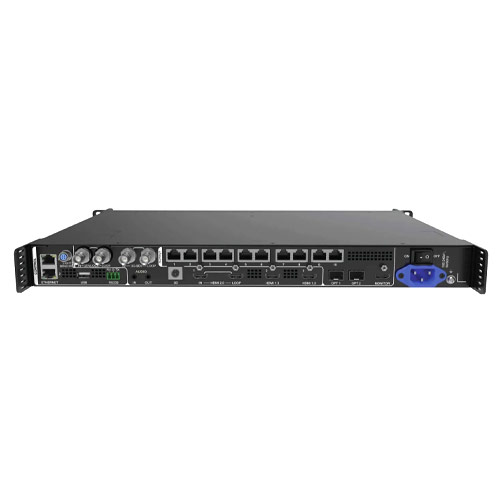

Novastar VX1000 Pro Case show
- Case show
The Novastar VX1000 Pro synchronizes audio transmission via HDMI sources and also supports audio transfer through its dedicated 3.5mm audio input/output ports.
The OPT 1 port transmits output signals via Ethernet ports 1–10 and features adaptive design, flexibly converting between input and output based on connected devices. The OPT 2 port replicates or backs up the output signals from Ethernet ports 1–10.
Currently on the market, the Novastar VX1000 Pro typically retails between $1,500 and $2,000. Specific pricing may vary based on region, sales channel, tax inclusion, and other factors.
For the latest quote, please contact JYLED’s professional sales team via the contact information below. We offer personalized one on one service.
Mutual exclusivity occurs under specific conditions. When the Novastar VX1000 Pro operates in Video Controller mode, low latency and GENLOCK functions are not mutually exclusive.
However, when the device is in ByPass mode, both low latency and GENLOCK functions cannot be enabled simultaneously.

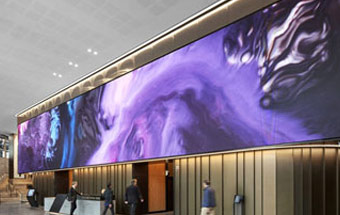

JYLED’s LED backdrop screen is a stage background display composed of multiple LED panels, each capable of independently displaying high definition images. It can play any background video tailored to the stage theme, creating optimal visual effects for your production.
JYLED’s 4K LED display boasts a resolution of up to 8.2 million pixels, earning it the designation of ultra-high definition LED display. This display delivers exceptional contrast and color reproduction, revealing rich details for a truly immersive visual experience.

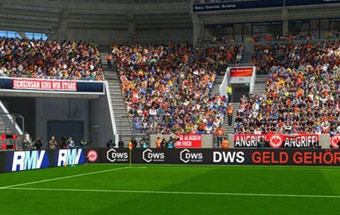

Stadium LED displays incorporate JYLED’s proprietary high elasticity protective cover, effectively preventing damage from accidental ball impacts. Additionally, its waterproof, dustproof, and corrosion resistant properties ensure exceptional durability.
JYLED’s trade show LED displays feature a modular design supporting multiple installation methods, allowing placement anywhere within exhibition spaces. Boasting high definition and high brightness display capabilities, they help your exhibition stand out among numerous booths.
LED totems are a widely used LED display product in retail advertising. These displays replace traditional advertising banners, delivering unmatched visual impact that creates a powerful visual effect and attracts more attention.

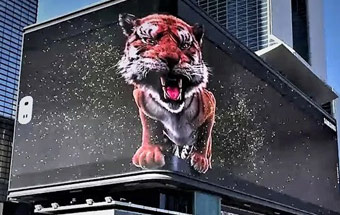

JYLED integrates 3D digital technology with LED display technology to create this 3D LED display with naked eye 3D visual effects. This display produces a three dimensional visual experience, making it a favored new advertising medium among many advertisers.
