Best Implementation of High Definition 4K Resolution
The 4K LED screen is an ultra-high-definition LED screen capable of providing image resolutions four times higher than 1080P. It is entirely composed of LED panels for lower power consumption, energy efficiency, and environmental friendliness.
Additionally, each cabinet of the 4K LED screen is in a 16:9 ratio (600*337.5mm), making it easier to achieve the 4K resolution (3840*2160). There are no visible gaps during splicing, resulting in a more natural display effect.
Various Types of 4K LED Screens

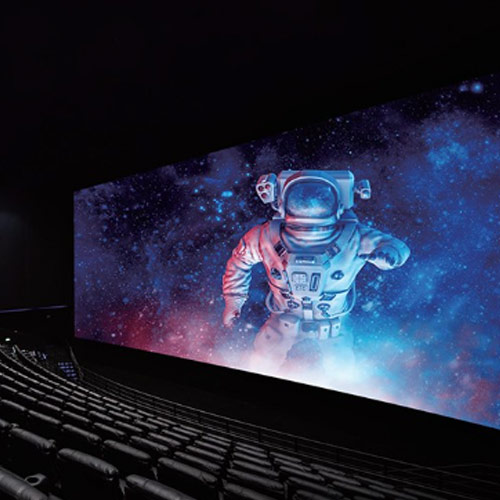

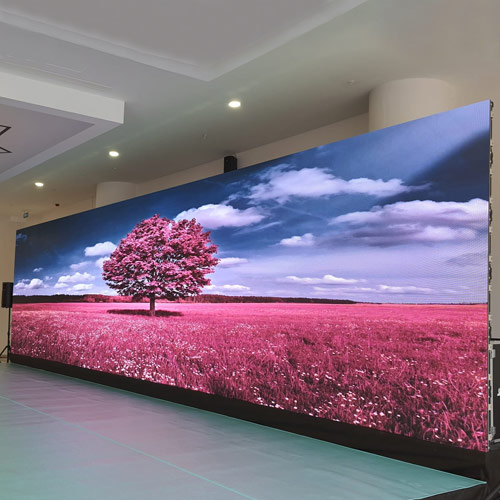

A large-sized LED video wall created by splicing 4K LED display screens, providing excellent display effects.
A small-sized 4K LED display screen with a 55-inch display, suitable for home use as a TV wall replacement.

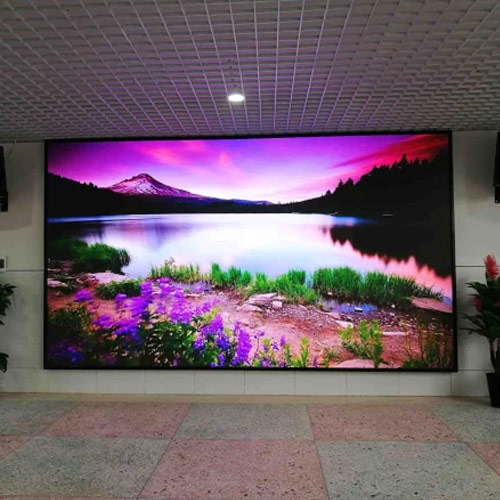

A 4K indoor LED display screen made with 1.9mm LED modules, featuring a small pixel pitch for clear viewing even at close distances.
Incorporates additional smart features, capable of intelligently controlling grayscale and color changes, and selecting different display schemes based on the scene.
Advantages of 4K LED Screens
4K LED display screens are widely used across various industries such as advertising, marketing, and classroom education due to their superior performance.
The 4K LED display screen provides a perfect visual experience with a high contrast ratio of 5000:1 and a wide viewing angle of 170°.
Equipped with high-quality ICs, 4K LED display screens offer higher refresh rates and faster response times, ensuring better image responsiveness.
Featuring stylish die-cast aluminum cabinets, the overall appearance of the 4K LED display screen is sleek and elegant.
Superior Heat Dissipation with Intelligent Power Management System
The JYLED 4K LED display screen incorporates an intelligent power management system, meeting international quality standards and balancing internal heat dissipation, ensuring prolonged operation without overheating and without the need for additional cooling devices.
Ultra-quiet Operation for Uninterrupted Quietness
The design of the 4K LED display screen slightly deviates from that of other LED displays. Its enclosure lacks internal fans, and with the support of an intelligent power management system, it offers an ultra-quiet operating mode.
Front Maintenance Design for Easy Maintenance
Unlike conventional LED cabinets that require rear cover removal for maintenance, 4K LED display screens are typically wall-mounted and feature front maintenance design, eliminating the need for rear cover removal during maintenance.
JYLED Customizes The Most Advanced 4K LED Screen For You
4K LED screen uses the best configuration, whether it is module lamp beads, power supply, or processor, just to achieve the best effect of the product. And there is strict quality control before leaving the factory to ensure that the products received by customers are the most perfect.
JYLED 4k LED screens are generally equipped with video processors, which have powerful video processing functions and can automatically adjust materials to adapt to the resolution of the screen to show customers the best image effects.
The power supply used by the 4K LED screen can adapt to extreme weather conditions of -30°C and 70°C, and has a built-in cooling function to facilitate heat dissipation.
The 4k LED screen module uses copper wire and copper brackets, which have good conductivity and are more stable to use.
Application Of 4K LED Screen In Different Occasions

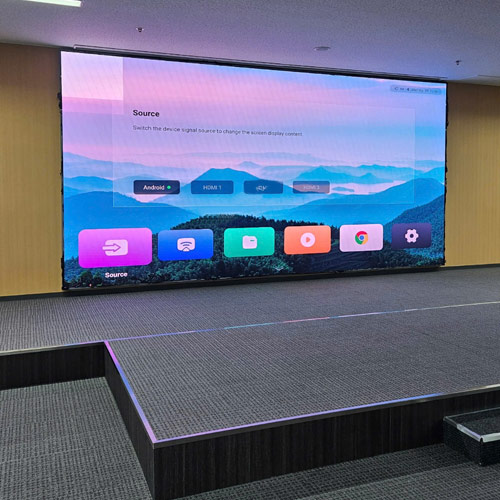

Since traditional conference room solutions are mainly based on projection, the projected images are often blurry. When we choose a 4K LED screen, we can perfectly solve this problem.
The traditional monitoring room uses an LCD intelligent control system, which has poor flexibility, large seams, and low brightness. It is difficult for staff to watch the screen, so it can be replaced with a more advanced and intelligent JYLED 4K LED screen.
Traditional entertainment display equipment is easily limited by factors such as size and brightness, while JYLED 4k LED screen can customize the size and brightness according to customer needs, giving customers a perfect experience.
JYLED 4K LED screen is more intelligent and can be connected to external video sources, can display different contents in different zones, and can view the data and scene images that need to be monitored in real time.
- Gallery
- Product specifications
- Product Document
| Product specifications | ||||
| Product specifications | P0.9375 | P1.25 | P1.5625 | P1.875 |
| Module size | 300mm*168.75mm | |||
| Module resolution | 320*180 | 240*135 | 192*108 | 160*90 |
| Cabinet resolution | 640*360 | 480*270 | 384*216 | 320*180 |
| Cabinet | 600mm*337.5mm | |||
| Maintenance | Front-maintenance | |||
| Grayscale | 14-16bit+ | |||
| Circuit scheme | Common cathode circuit | Common anode circuit | ||
| Driver Mode | Constant current drive | |||
| Brightness | 300-800nit | |||
| Refresh rate | 3840Hz | |||
| Viewing angle | Horizontal 160° / Vertical 140° | |||
| Power requirements | Wide voltage AC 100-240V Ultra-thin PFC power supply | |||
| Compatible function | Redundant backup of power supply/receiving card | |||
| Maximum power consumption (per cabinet) | <120w | |||
| Average power consumption (per cabinet) | <40w | |||
| Certification | CCC,ISO9001,FCC,CE,ROSH | |||
Indoor 4K LED screen has better picture quality and higher refresh rate than conventional LED display
The 4K HD LED screen adopts magnetic front maintenance, which is very easy to install and remove, so it is very convenient for maintenance.
Like other LED displays, 4K LED screens are generally packed in wooden cases.
Normal transportation generally does not cause any problems. Because JYLED displays are exported in standard export wooden cabinets, which can protect the screen to a certain extent, but care must still be taken to prevent bumps during transportation.
Normal transportation generally does not cause any problems. Because JYLED displays are exported in standard export wooden cabinets, which can protect the screen to a certain extent, but care must still be taken to prevent bumps during transportation.
As long as it is not a particularly large 4K LED screen, it can generally be instalLED on the same day.
Compared to other types, 4K LED display screens offer superior color display and clarity while being energy-efficient. They also boast longer lifespans and better value for money under similar conditions.
4K LED display screens are primarily composed of LED panels without visible gaps during splicing, while 4K LCD displays involve LCD panel splicing, which may result in unavoidable fine seams.
When encountering water stains or dirt, simply wipe clean with a dry towel. For stubborn stains, a small amount of alcohol on the towel can be used for cleaning.
The cost of repairing a 4K LED display screen varies significantly depending on the components involved. For repairs of JYLED 4K LED display screens, please consult us for timely assistance.
As of 2022, the largest 4K LED screen is the one used at the Beijing Winter Olympics, with a total area of 11,000 square meters.
