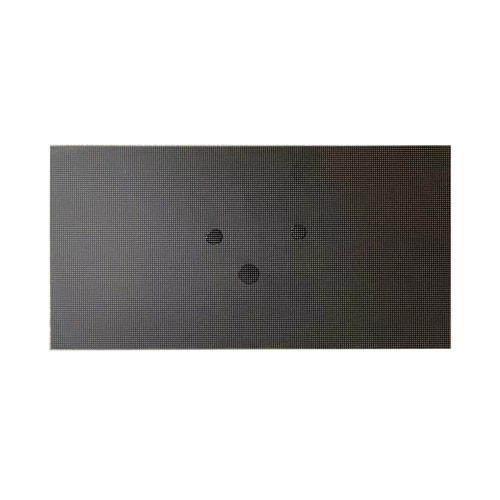

What is a GOB LED Module?
JYLED’s GOB LED modules primarily utilize advanced GOB technology for encapsulation. By applying a layer of epoxy resin or adhesive directly onto the LED module, it not only effectively protects individual LED chips but also delivers stable performance and exceptional display quality.
The adhesive layer in GOB LED modules plays a crucial protective role, effectively preventing damage from moisture, dust, impacts, and other factors. Consequently, it offers high durability and reliability, ensuring long-term stable operation whether in suitable indoor environments.
What Types of GOB LED Modules Does JYLED Offer?
Below are JYLED’s primary GOB LED module models. Beyond these options, JYLED offers customization services. Click the button below to inquire if needed.

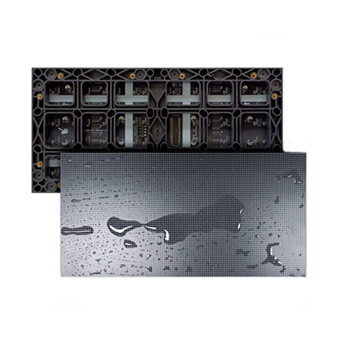

Featuring a pixel pitch of 1.25 mm, the P1.25 GOB LED module boasts an exceptionally fine pixel spacing, delivering high clarity and detailed visual expression. When used indoors, it provides a more refined and lifelike visual experience.

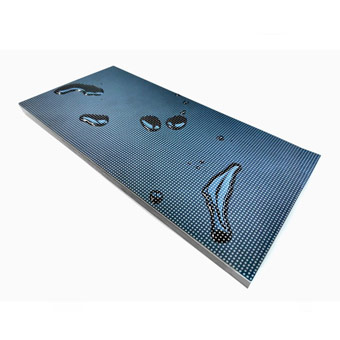

JYLED’s P1.538 GOB LED module primarily uses 1010 or 1212 LED specifications. To maintain outstanding display performance, we employ a high refresh rate of 7680Hz, providing you with a smoother, more stable, and higher-definition visual feast.
Our P1.86 GOB LED module measures 320 mm × 160 mm. This versatile size allows seamless splicing into GOB LED displays of various aspect ratios, offering high flexibility and creative potential.

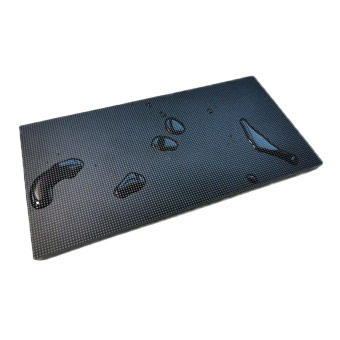

JYLED’s P2 GOB LED module features a 2 mm pixel pitch, delivering exceptional image clarity and stunning visual quality. Its outstanding matte display makes it ideal for LED billboards, small-pitch LED displays, and similar applications.

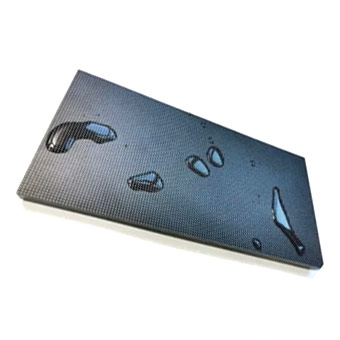

The P2.5 GOB LED module features a 2.5 mm pixel pitch with an optimal viewing distance of 2.5-4 meters. Utilizing high-specification LED chips, it delivers exceptional image quality and is frequently employed in indoor LED walls and LED poster displays.

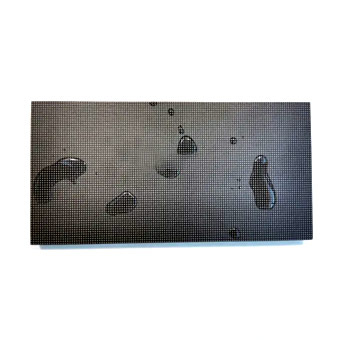

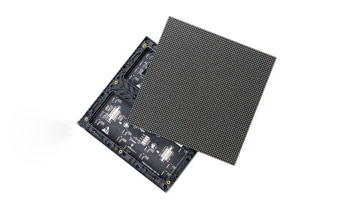

The P3 GOB LED module features a 3 mm pixel pitch with an optimal viewing distance of 3-4.5 meters. It delivers outstanding visual effects in indoor, ensuring a perfect viewing experience for audiences.

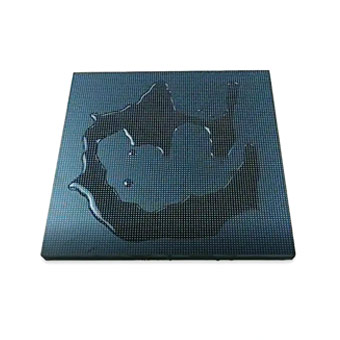

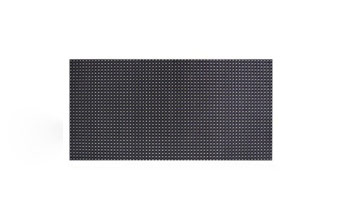

The P4 GOB LED module features a 4 mm pixel pitch. It not only provides greater image detail but also delivers higher image quality, making it suitable for larger indoor venues such as churches, concerts, and stages.

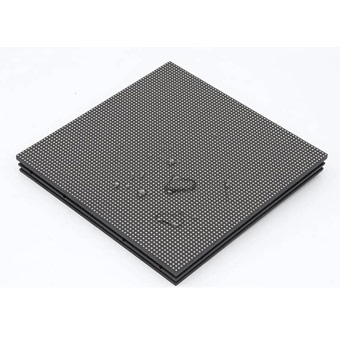

The P5 GOB LED module features a 5 mm pixel pitch, delivering optimal viewing within a 5-7.5-meter range. Additionally, it primarily utilizes highly stable driver ICs—ICN2038s and ICN2153—ensuring more stable, smoother, and clearer display content.
GOB LED Module Features

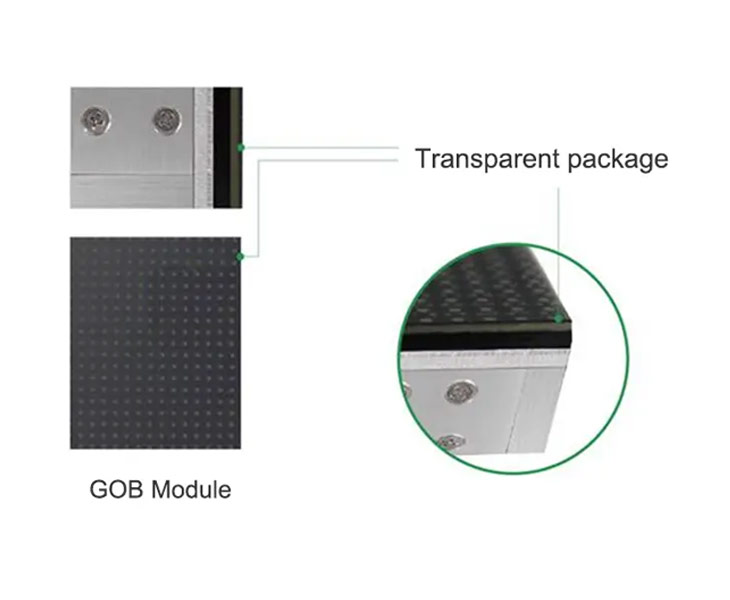

Utilizing advanced adhesive coating technology, the GOB LED module achieves a smooth, flat surface that transforms point light sources into a uniform light field. This ensures even illumination while significantly expanding the viewing angle to 180 degrees both horizontally and vertically.
JYLED’s GOB LED modules incorporate high-quality components featuring strong adhesion, high transparency, anti-static properties, and heat resistance. This prevents issues like dead pixels, crawling effects, and board deformation while ensuring longevity and performance reliability.

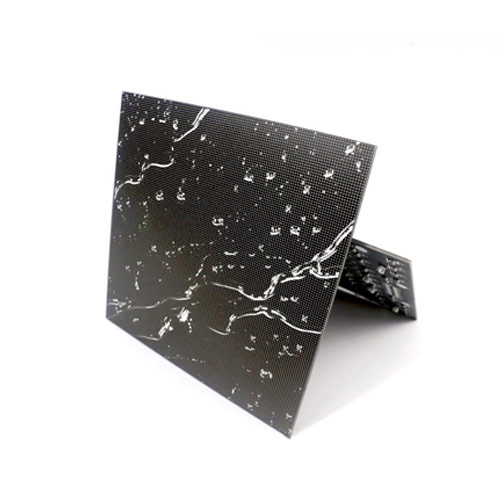

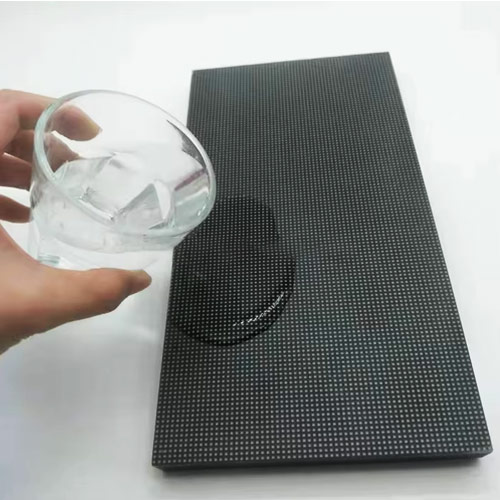

The GOB LED module employs advanced display technology, encapsulating the LED chip and circuitry within transparent epoxy resin. This provides waterproof, dustproof, and UV-resistant properties, protecting against harsh environments and physical damage while delivering enhanced durability and reliability.
Our GOB LED module utilizes innovative adhesive materials, offering excellent sealing properties alongside ultra-high transparency. This delivers outstanding color uniformity and brightness, along with lifelike colors and an immersive display experience.
JYLED’s GOB LED modules operate at a high refresh rate of 7680Hz. Even when displaying sports events or racing competitions, the screen remains free of stuttering, frame drops, or ghosting, ensuring an exceptional immersive viewing experience.
The raw materials used in GOB LED modules are recyclable and environmentally friendly, posing no harm to the environment. Additionally, our intelligent heat dissipation system and energy-saving design align with green principles while reducing your operational costs.
72-Hour Aging Test

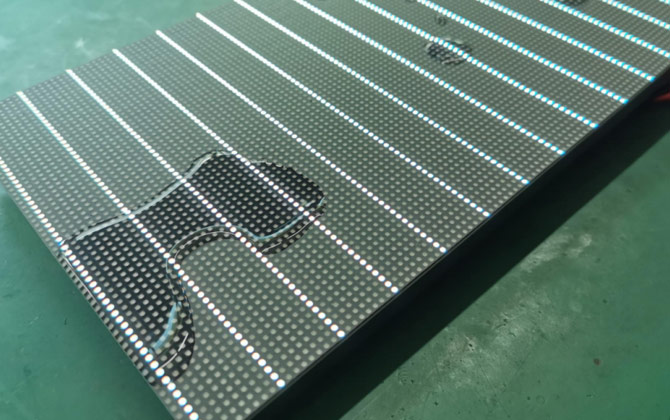

JYLED possesses professional production equipment, ensuring its products undergo rigorous quality control before delivery. GOB LED modules must endure 72 hours of white balance aging and video aging tests before shipment. Additionally, raw materials such as driver ICs and LED chips undergo inspection and testing by specialized personnel.
Rigorous quality control effectively prevents issues like color deviation, moiré patterns, and dead pixels in GOB LED modules, ensuring flawless products and delivering high-quality solutions to customers.
High Production Efficiency
Leveraging 15 years of accumulated expertise, JYLED has not only introduced advanced automated equipment from abroad, but also developed sophisticated and mature manufacturing processes for GOB LED modules. The company operates eight state-of-the-art automated production lines.
Consequently, our GOB technology features high automation and simplified production processes, significantly boosting manufacturing efficiency. Furthermore, GOB LED modules deliver superior consistency and reliability while reducing manual intervention, lowering error rates, and increasing production yield.
Lower Maintenance Costs
For other LED modules, maintenance can incur substantial expenses, and irregular upkeep compromises optimal performance. However, purchasing JYLED’s GOB LED modules minimizes maintenance requirements.
The epoxy resin coating on GOB LED modules acts as a protective barrier, effectively shielding against dust and grime. Surface contaminants can be easily removed by gently wiping with a lint-free cloth. This not only reduces costs associated with frequent cleaning and maintenance but also ensures exceptional display performance.
Multiple Model Options
To enable customers to select the most suitable model based on viewing distance and application scenarios, JYLED manufactures various GOB LED module models including P1.25, P1.538, and P1.904, offering you greater choice. For inquiries about other models, click the button below to consult our service team, who will respond promptly.
When selecting a model, note that smaller model numbers indicate denser LED placement, higher resolution, and a more suitable viewing distance. Conversely, larger model numbers feature wider spacing between LEDs, making them ideal for viewing from greater distances.
GOB LED Module VS Standard LED Module
Superior Image Quality
Compared to standard LED modules, GOB modules utilize an epoxy resin coating that delivers an exceptional matte finish. This coating significantly enhances image contrast while reducing surface reflections, resulting in a superior viewing experience.
Additionally, GOB technology ensures a smoother, flatter surface, providing not only excellent image consistency but also outstanding overall image quality.
Longer Service Life
In terms of lifespan, standard LED modules typically last between 50,000 to 100,000 hours. GOB LED modules, however, are sealed with specialized adhesive to form a robust protective layer that effectively resists environmental impacts and wear. Consequently, they offer a longer service life than conventional LED modules.
Exceptional Durability

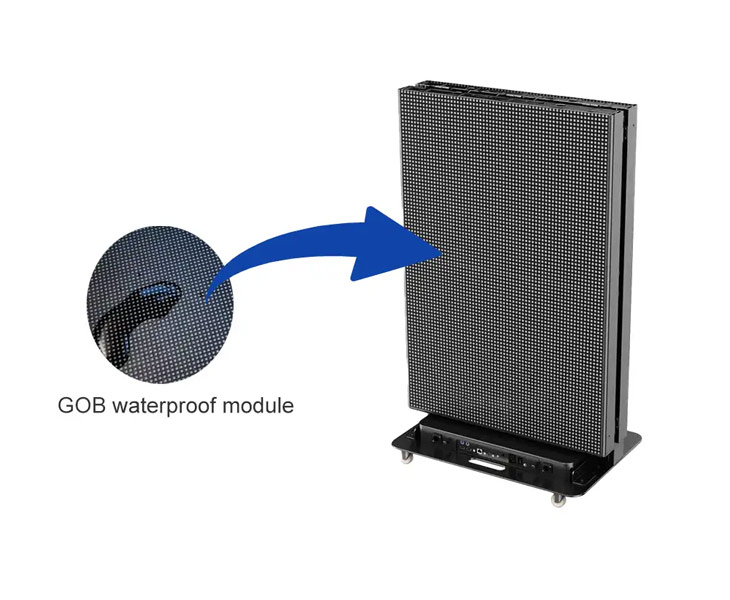

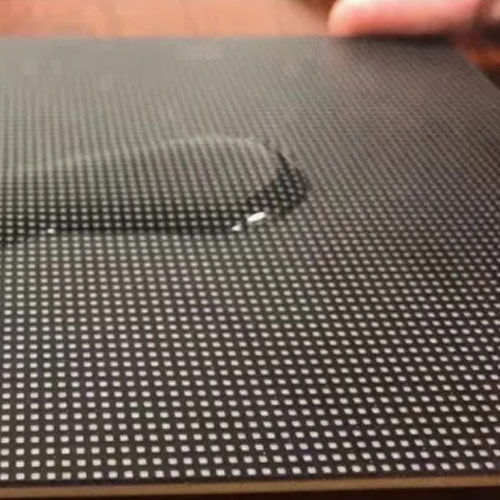

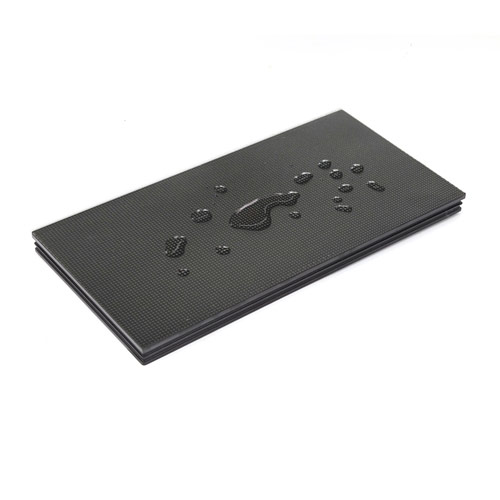

While standard LED modules typically only achieve high waterproof ratings for outdoor use, GOB LED modules deliver outstanding water resistance on their front surface even in indoor applications.
Coated with specialized adhesive on the PCB surface, GOB LED modules deliver unmatched durability and impact resistance. They withstand harsh conditions like humidity, moisture, and dust while shielding LEDs from scratches, vibrations, and accidental impacts.
What Fields are GOB LED Modules Suitable for?
Employing rigorous manufacturing processes, GOB LED modules deliver exceptionally smooth and flat screens with a seamless, non-grainy surface texture. Their outstanding visual performance makes them ideal for immersive environments like cinemas, exhibition halls, and bars.
JYLED’s GOB LED modules utilize surface encapsulation technology, offering waterproof, dustproof, and impact-resistant advantages. When deployed for indoor public information displays, they deliver messages to audiences swiftly and efficiently while providing clear, consistent advertising impact.
In retail stores, GOB LED modules assembled into poster displays create vivid, lifelike visuals that effectively draw attention. Their epoxy resin coating maintains pristine condition even with frequent audience interaction, significantly reducing maintenance and cleaning frequency.
In high-traffic locations like airports, train stations, and high-speed rail terminals, JYLED’s GOB LED modules can display critical information such as flight schedules and timetables. Combining reliability and stability, they deliver streamlined, efficient travel services to passengers.
By assembling GOB LED modules into fine-pitch GOB LED displays, meeting rooms or lecture halls can clearly present conference content and video conferences. This setup ensures efficient meeting operations while significantly enhancing communication effectiveness among attendees.
JYLED’s GOB LED modules boast exceptional protective capabilities. Installed in stadiums, they withstand demanding athletic environments while ensuring seamless live broadcasts and uninterrupted sports event coverage.
The protective adhesive coating of GOB LED modules delivers durable, cost-effective screens that endure frequent use in educational settings. Consequently, GOB LED displays are increasingly becoming essential tools for interactive learning, event presentations, and information dissemination in schools and educational institutions.
JYLED’s GOB LED modules, with their high-quality video performance and rich color gradation, are particularly suited for venues demanding premium visual presentation, such as auditoriums and museums. Installing them inside auditoriums or at entrances for displaying videos, animations, and information lends a modern ambiance to the space.
GOB LED Modules Case show
- Case show
JYLED recommends purchasing multiple GOB LED modules at once. Due to slight variations in RGB grading, color, bezel, and brightness between different production batches, compatibility with previous modules cannot be guaranteed.
JYLED’s GOB LED modules support diverse display formats including text, images, and videos. Utilizing cutting-edge GOB packaging technology, we deliver outstanding full-color displays and high-definition visual effects.
GOB LED modules support both air and sea freight. Air freight offers faster delivery but higher costs, while sea freight is slower yet more cost-effective. Choose based on your location and urgency.

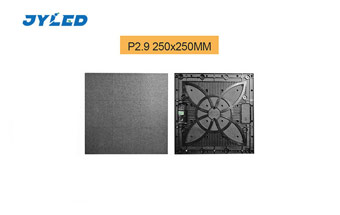

To maximize design flexibility and modularity, JYLED offers multiple GOB LED module dimensions: For example: 320×160 mm, 250×250 mm, 192×192 mm, 320×320 mm, 160×160 mm. The 320×160 mm GOB LED module offers the best cost-performance ratio and can be assembled into screens with various aspect ratios such as 4:3 and 16:9.
JYLED’s GOB LED modules support multiple input and control options including Wi-Fi, 4G, and wireless networks, enabling remote management and real-time monitoring.
