Key Features of the Magnetic LED Module
- High Brightness: 500 – 1000 nits for indoor, 3500 – 6500 nits for outdoor (flexible models only)
- Refresh Rate: ≥ 3840 Hz
- Full Color Display: Over 16.7 million colors
- Compatible Controllers: Huidu, Linsn, Novastar, Colorlight, etc.
- Quality Certifications: RoHS, CE, FCC certified
- Lifespan: Over 100,000 hours
Magnetic LED Module Supports 100-Level Brightness Adjustment
JYLED’s magnetic LED module supports real-time brightness adjustment with up to 100 brightness levels, allowing you to freely adjust the module’s brightness according to ambient light conditions:
- In high ambient light, increase the module’s brightness to maintain image clarity and visibility.
- When ambient light is low, lower the magnetic LED module’s brightness to prevent the display from being too glaring, which can cause eye strain for viewers. This also reduces unnecessary energy waste and saves on screen operating costs.
If you prefer not to adjust the screen brightness manually, you can click the consultation window on the JYLED official website to contact our sales specialists and have a brightness sensor integrated into the magnetic LED module.
The module will then automatically adjust based on ambient light levels, eliminating the need for manual operation.

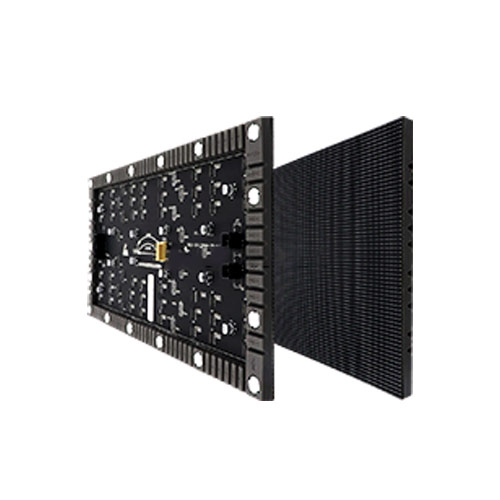

What Types of Displays Can Magnetic LED Modules Be Used For?

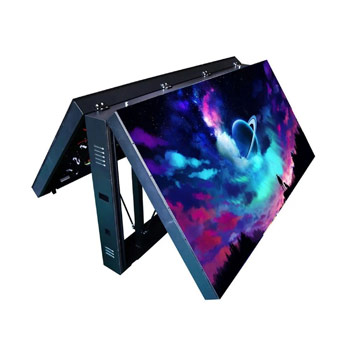

Supports simultaneous content display on both the front and back surfaces, allowing you to convey richer information in a single display, with broader coverage and higher information delivery efficiency.

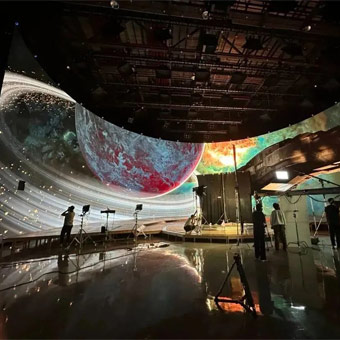

Can display extremely realistic backgrounds, providing low-cost, instantly switchable scenes for film production and reducing production costs.

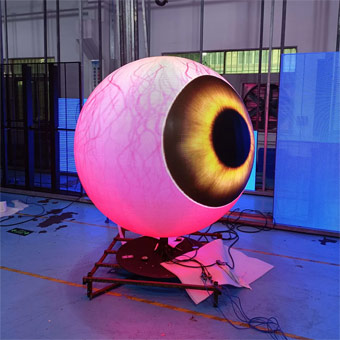

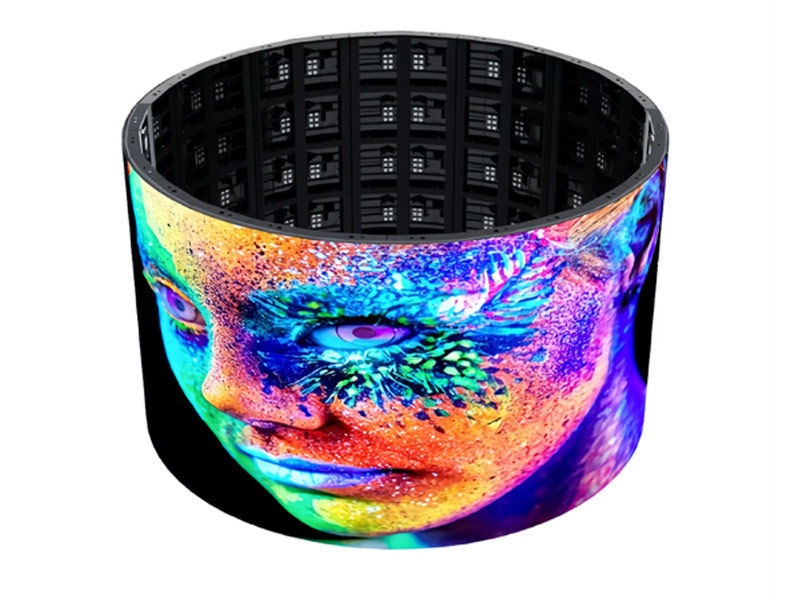

The 3D spherical display delivers highly impactful content that instantly captures the audience’s attention, while the 360° viewing angle ensures your content reaches every corner of the space.
Installed in commercial areas, these displays precisely target consumers with advertisements. Requiring only a small amount of indoor space, they can generate significant advertising revenue for you.

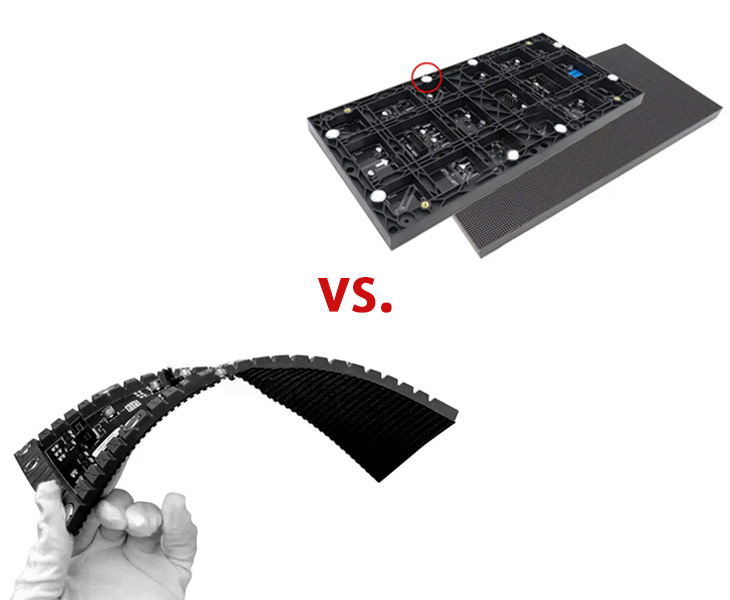

Rigid Modules vs. Flexible Modules
JYLED’s magnetic LED module offers both rigid and flexible module options, enabling you to achieve different display benefits.
- Rigid LED Modules: Rigid LED modules are suitable for installing conventional rectangular displays. They are relatively more cost-effective, offer high image quality, and deliver excellent color reproduction, making them a suitable choice for most display environments.
- Flexible LED Modules: Flexible magnetic LED modules enable the installation of highly creative display shapes, such as spherical, cylindrical, ring-shaped, and wave-shaped designs.
Compared to rigid modules, their purchase cost is higher, but the visual appeal and display benefits of flexible modules are equally impressive.
Whether you need a specific type of magnetic LED module or are unsure which one is best suited for your project, you can click the “Inquire” button below to contact JYLED. Our sales specialists will help you develop a suitable procurement plan.

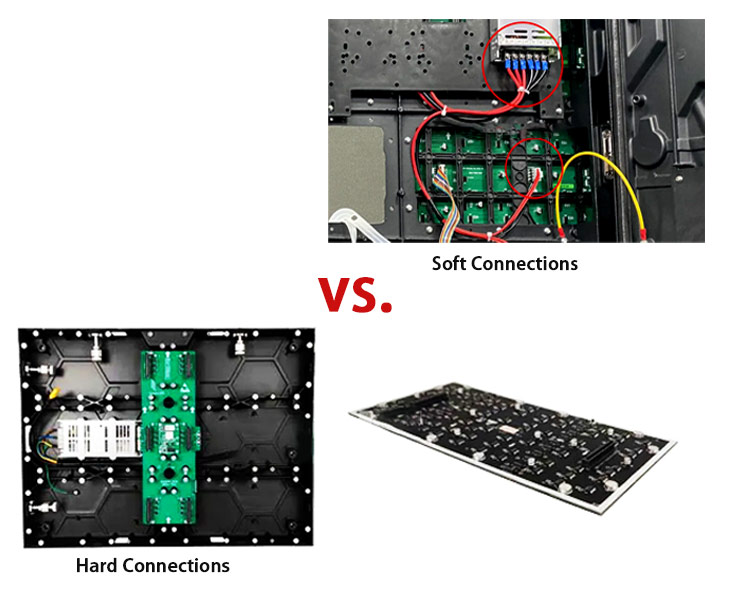

Supports Hard and Soft Connections
JYLED’s magnetic LED modules support both hard-wiring and soft-wiring modes, each offering distinct benefits:
- Hard-wiring: Hard-wired magnetic LED modules connect directly via interfaces between modules, eliminating the need for additional cables.
This method provides greater stability and a cleaner overall screen appearance, free from the hassle of loose cables. However, it is slightly more expensive than soft-wiring modules, and its data transmission rate is relatively fixed.
- Soft Connection: Soft connection refers to the more common method of connecting modules using cables. This method is relatively lower in cost, and you can achieve higher data transfer rates by replacing the cables. However, you will need to inspect the cables regularly to prevent loose connections.
Depending on your budget and usage environment, the suitability of these two connection methods for display projects varies. You can choose the appropriate connection method based on your specific needs and budget.
Magnetic LED Module Case show
- Case show
Magnetic LED Module: A Quick Deployment Display Solution!
The magnetic LED module is an LED module that is extremely easy to install and remove. With its slim panel and compact design, it is an ideal choice for installing displays in indoor environments.
What kind of display effects can be achieved with the magnetic LED module? Is installation really that simple? Let’s take a quick look at this article.
The Magnetic LED Module: Easy to Install and Maintain
The Magnetic LED Module is not only quick and easy to install but also simple to maintain. It helps you save significant time and labor costs during installation and operation, enabling you to achieve higher display returns.
Install a Module in 3 Seconds, Reducing Labor Costs
The magnetic design allows your technicians to install a single module in just 3 seconds. Installation is simple and efficient, helping you save a significant amount on labor costs for each display project.

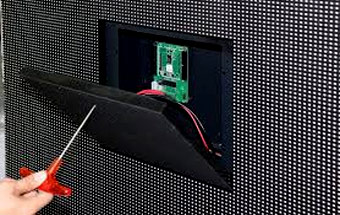

Supports Front Access Maintenance, Reducing Your Maintenance Costs
Typically, LED displays operate stably with very few malfunctions.

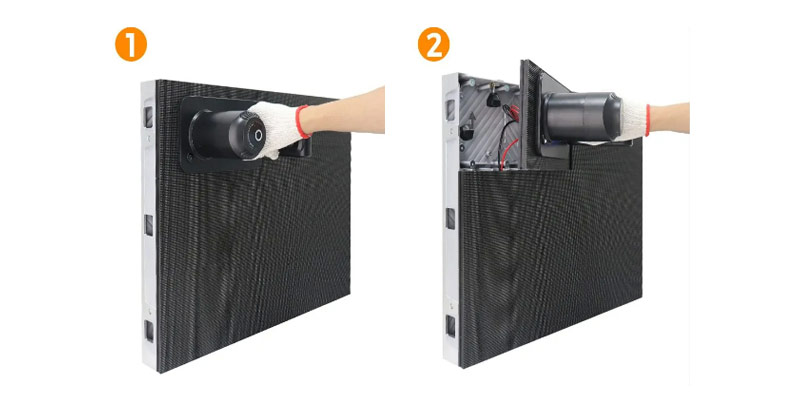

However, in the event of an unexpected screen failure, you can directly remove the magnetic LED modules from the front to inspect the modules and internal cabinet components.
This allows you to identify the issue and perform maintenance quickly, reducing downtime and lowering maintenance costs.
Minimize Screen Downtime and Ensure Display Returns
JYLED provides 5% spare modules free of charge. In the event of an unexpected issue, you can easily remove the faulty magnetic LED module and replace it with a spare.
Quick replacement ensures shorter screen downtime, minimizes losses caused by downtime, and safeguards your revenue.
High Quality Components in Magnetic LED Modules Deliver Stunning Visuals
The exceptional performance and visuals of magnetic LED modules are made possible by their high quality components, which deliver stunning images and a long service life for your screen.
Nationstar and Kinglight LED lamps
All JYLED LED modules use LED lamps from Nationstar and Kinglight as raw materials for production. These two companies are the most renowned suppliers of LED lamp materials in the LED display industry. High quality LED lamps deliver:
- Exceptional brightness: Indoor modules achieve 500 – 1,000 nits, while outdoor modules (flexible) reach 3,500 – 6,500 nits. High brightness is essential for maintaining clear and visible screen images.
- Long-lasting brightness: High quality LEDs have a lower lumen depreciation rate, with an annual depreciation rate of less than 1%. This is 80% lower than the depreciation rates of other LED brands on the market, ensuring your screen maintains high brightness for over 6 years.

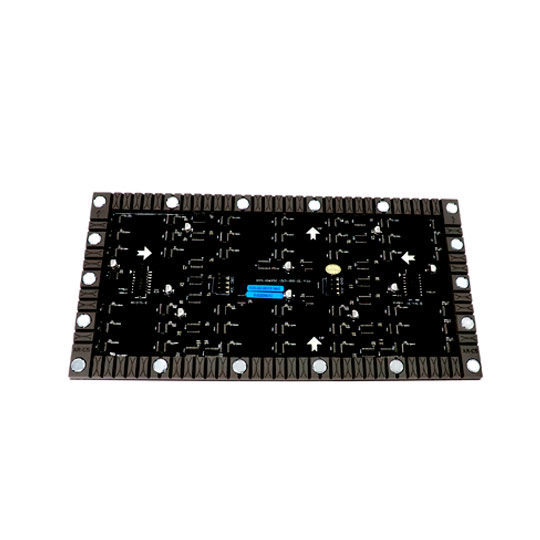

- Wide viewing angle: High quality LEDs have stronger light confinement, preventing light dispersion from the modules. The screen’s viewing angle reaches 160°.
Even when viewed from extremely challenging angles, your display remains clear and true to life.
High Performance Driver IC
The better the performance of the driver IC, the more evenly it can control the current distribution across the magnetic LED modules, ensuring more consistent brightness across the LEDs and eliminating noticeable variations in brightness.
Furthermore, high performance driver ICs support a greater number of brightness levels for LED chips. The IC in this module can control the brightness of each color chip across 256 levels.
By combining the different brightness levels of the three color LED chips, it can produce 16.7 million colors, and the wide color gamut ensures your images are reproduced with greater realism.
Multi-Layer PCB
This module supports 2-layer or 4-layer PCB designs. The multi-layer structure enhances PCB stability, improves heat dissipation, and ensures more uniform and reliable color reproduction.
- The higher the number of layers, the more uniform and precise the current distribution across the module’s components becomes, resulting in more energy-efficient operation.
- Conversely, a lower number of layers reduces PCB production costs, lowering your overall purchase price.
Regardless of which PCB specification you require, you can contact JYLED for a custom solution.
Supports 2K and 4K Displays
This module features a modular design, allowing you to assemble a high resolution display, such as 2K or 4K, by purchasing the required number of modules, delivering stunning, cinema quality clarity to you and your audience.
Feature Rich Controller

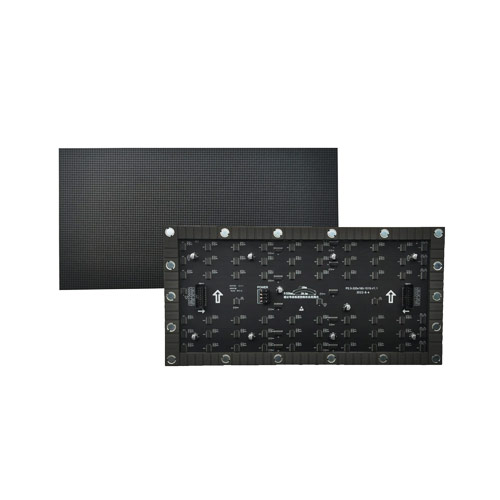

The magnetic modules are compatible with most mainstream controllers on the market, such as Huidu, Linsn, Novastar, and Colorlight. Choosing a powerful controller can create richer playback effects for your display.
- Picture-in-Picture mode with more information.
- Picture roaming mode with dual dynamic effect overlay.
- Image scaling function that automatically optimizes resolution.
- Auto-switching function to toggle between multiple content sources.
- Remote management function for easier administration.
- Eye-catching 3D effects for your display.
If you purchase modules from JYLED, our sales specialists can help you select the right controller to ensure it meets your needs in terms of both budget and functionality.
SMD vs. GOB Vs. COB: How to Choose Among Different Packaging Types for Magnetic LED Modules?
Currently, in addition to SMD magnetic LED modules, the market also offers GOB and COB technologies. What are the advantages of these different packaging technologies? Which one is best suited for your project?
Please refer to the table below for a clearer understanding of the differences between the three:
| Working Principle | Pixel Pitch | Advantages | Cost | Recommendation | |
| SMD Magnetic LED Module | Uses surface-mount technology to bond individual LED chips (RGB) onto a substrate | 1.25 mm ~ 10 mm | More uniform and brighter LED illumination, more vivid colors, and easier maintenance of individual LEDs | Simple manufacturing process, lower cost | Suitable for standard indoor and outdoor displays, as well as large, medium, and small-sized displays |

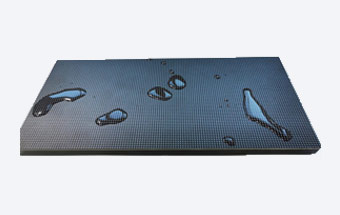

| GOB Magnetic LED Module | Based on SMD technology, a layer of transparent epoxy resin is applied to the surface of the magnetic LED module | 1.25 mm ~ 3.91 mm | The module surface offers excellent dustproof, waterproof, and scratch-resistant properties, and also provides anti-glare treatment | Requires additional processes beyond SMD, resulting in slightly higher costs than SMD technology | Suitable for indoor screens viewed at close range or that come into contact with viewers |

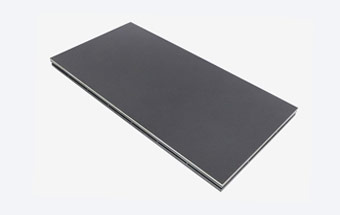

| COB Magnetic LED Module | LED chips are directly bonded in bulk to the substrate | 0.6 mm ~ 1.9 mm | Higher optical efficiency of LED light emission, enabling finer pixel pitch | More complex manufacturing process, resulting in higher costs | Suitable for high-end indoor display scenarios with stringent image quality requirements |
As such, if your display application does not have particularly high image quality requirements, you can choose the SMD Magnetic LED Module to save on purchase costs.
If your display is installed indoors and close to the audience, and you want to provide more protection for the module panels, then the GOB magnetic LED module is a better choice.
If your display requires extremely high image resolution and is installed indoors, then the COB magnetic LED module is the best option.
In Which Scenarios Can Magnetic LED Modules Be Used?
In most cases, magnetic LED modules are used for indoor installations; magnetic modules are typically only used for outdoor installations of flexible LED modules in a limited number of scenarios.
Actual application scenarios for magnetic LED modules include:

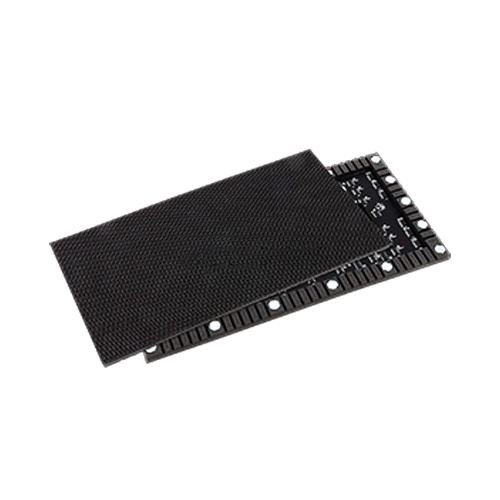

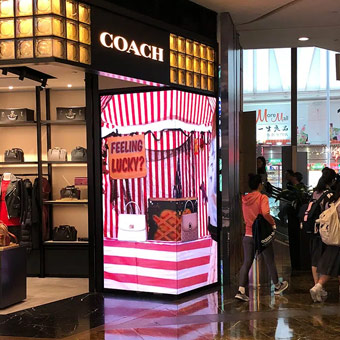

- Retail Stores: Magnetic modules require minimal installation space, making them ideal for compact retail environments to promote products and sales events, stimulate consumer purchases, and increase store revenue.
- Conference Rooms: Installing displays using magnetic modules in conference rooms can effectively reduce installation costs and improve meeting efficiency, delivering tangible benefits to businesses.
- Museums: Magnetic LED modules installed in museums can be used to showcase important exhibits, attracting more visitors to learn about them.
- Trade Shows: At trade shows, magnetic modules allow for the display of product promotional videos without taking up excessive space, drawing more potential customers to the booth.
No, magnetic LED modules come in both rigid and flexible types. Both rigid and flexible magnetic LED modules are typically installed indoors; in rare cases, flexible magnetic LED modules may be installed outdoors.
No. Magnetic LED modules use strong magnets with excellent holding power, so they will not easily detach.

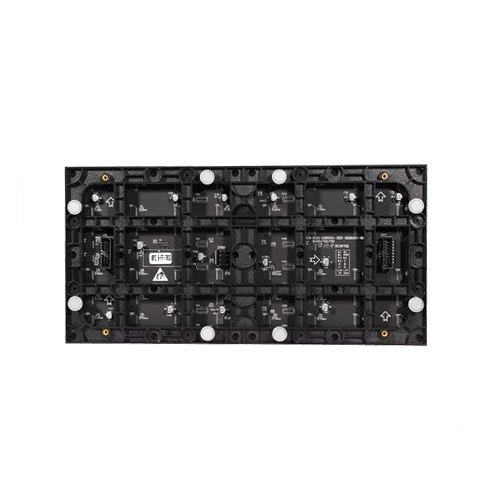

Magnetic LED modules are primarily used with iron alloy cabinets, as iron provides a better surface for the magnets to adhere to.
If used with die-cast aluminum or carbon fiber cabinets, additional iron plates must be added to the cabinet to support the magnets.
No, the magnets on the magnetic LED modules do not lose their magnetic strength over time and do not need to be replaced.
In theory, the magnetic LED modules can be removed by hand. However, to ensure the reliability and safety of the LEDs on the module surface, we typically use a suction cup to remove the modules.
