What is a DIP LED Module?
A DIP LED module refers to an LED module produced using DIP packaging technology. DIP stands for dual in-line package. JYLED’s staff installs the parallel pins of red, green, and blue LED chips through holes on the PCB board and uses solder bonding to independently package the three-color LED chips.
JYLED’s DIP LED modules offer extremely high brightness, with outdoor products reaching up to 10,000 nits. Even under direct sunlight, viewers can clearly see the screen content. As a result, JYLED’s DIP LED modules are highly popular in the outdoor display market.
Common Models of DIP LED Modules
JYLED’s DIP LED modules come in the following four common product models, which can almost meet all display requirements for DIP LED screens on the market.

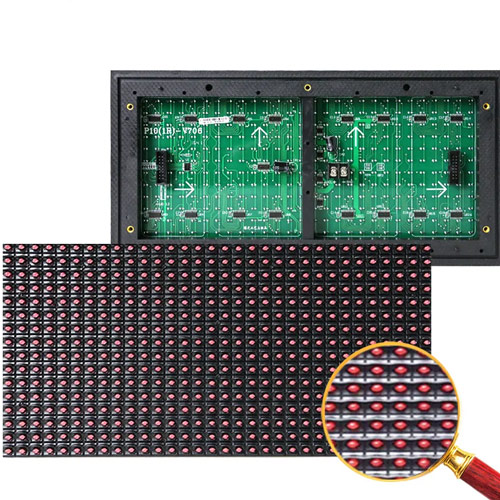

The P10 DIP LED module has the smallest pixel pitch among outdoor DIP LED modules, with a brightness of up to 8,000 nits, making it the most widely used product currently available.

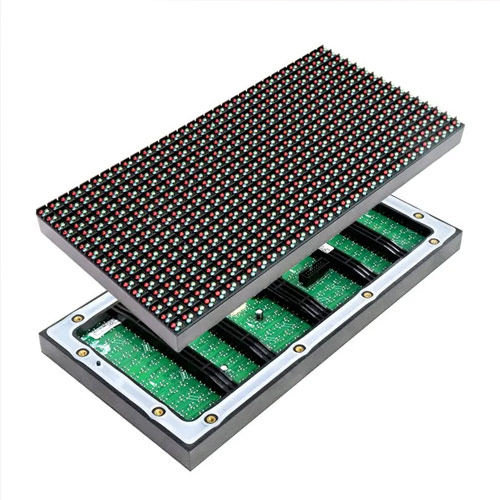

The P12 DIP LED module also offers excellent image clarity and superior waterproof performance. As an outdoor billboard, it can attract the attention of pedestrians from a distance.

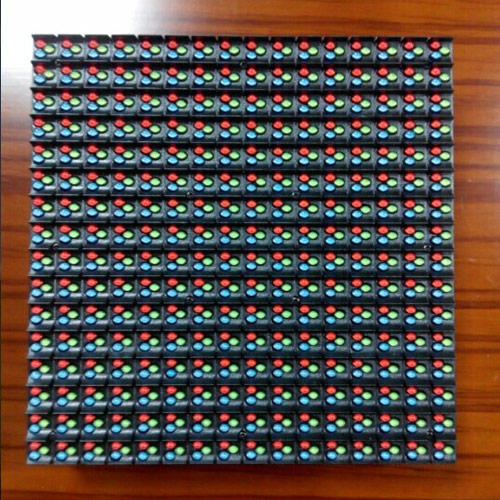

The P16 DIP LED module has an optimal viewing distance of 16–32 meters. Its ultra-long viewing distance allows it to be seen immediately by drivers traveling at high speeds, making it the preferred choice for outdoor highway exit information signs.

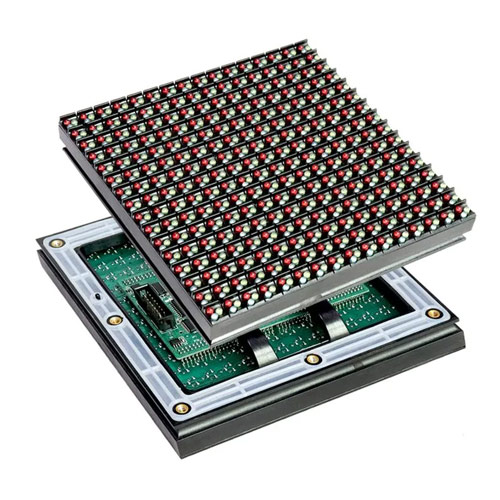

Due to the large pixel pitch of the P20 DIP LED display, P20 DIP LED modules need to be assembled into LED screens larger than 50 square meters to achieve good display effects. They are suitable for large billboards at outdoor highway intersections.
Features of DIP LED Modules
DIP LED modules are widely favored for outdoor large-scale LED displays due to their large-sized LED chips, high brightness, and excellent cost-effectiveness.
LED modules using other packaging technologies typically have a brightness of 5,000 to 5,500 nits, while JYLED’s DIP LED modules achieve a basic brightness of 8,000 to 10,000 nits, ensuring exceptional visibility.
JYLED subjects its DIP LED modules to aging tests before shipment. After aging, the qualified DIP LED modules exhibit uniform brightness and extremely consistent color display.
DIP LED modules have two soldered leads for each LED chip, and these leads are extremely long. This design makes it simpler for machinery to solder these long leads to the PCB board, resulting in more stable soldering.
After packaging, the LED chips in JYLED’s DIP LED modules have consistent height and uniform brightness. When powered on, the screen displays excellent visual effects with high overall flatness.
The DIP LED module is the earliest encapsulation technology used since the advent of LED screens. After years of continuous development, DIP encapsulation technology has become highly mature in production.
JYLED’s DIP LED module supports both front and rear maintenance methods. Especially for installation environments with limited space, installing the DIP LED module with front maintenance can save a significant amount of installation space.
DIP LED Modules Support LED Color Calibration Technology
Before shipment, JYLED engineers arrange for workers to use control software to perform batch color calibration on DIP LED modules. By continuously adjusting color and brightness parameters, all DIP LED modules maintain consistent color and brightness, ensuring better screen uniformity and a superior viewing experience when assembled into a complete DIP LED screen.
In addition to calibrating the DIP LED modules, JYLED also performs color calibration on LED cabinets and LED screens, striving to achieve remarkable color consistency in the final display.
DIP LED Modules Support Multiple Control Systems
An excellent control system can significantly enhance the display performance of an LED screen. The more precise the control system is in adjusting LED screen parameters, the better the screen display can be tailored to viewers’ preferences.
Currently, common video software control companies in the market include Linsn, NovaStar, Dbstar, Colorlight, Mooncell, Onbon, Xixun, and Lumen. JYLED’s DIP LED modules are compatible with all mainstream video control software, offering exceptional compatibility. You can freely choose the control software and adjust the screen display to your preferred parameters.
JYLED is an Outstanding DIP LED Module Manufacturer!
JYLED’s DIP LED modules feature hidden wiring, giving them a more modern and sleek appearance. The modules are equipped with built-in waterproof seals, ensuring an IP65 waterproof rating when assembled into LED cabinets. Both the front and back of the screen offer robust waterproofing, enabling stable operation even under heavy outdoor rainfall.
JYLED’s engineers have designed an automatic power regulation system for the DIP LED modules, ensuring stable voltage and preventing faults caused by voltage issues during operation. Additionally, the modules have a high energy conversion efficiency, offering high brightness while remaining highly energy-efficient and environmentally friendly.
Choosing JYLED as your DIP LED module supplier not only provides you with high-quality products but also ensures attentive service and long-term after-sales support!
Application Scenarios for DIP LED Modules
DIP LED modules offer stable performance and high brightness, ensuring high visibility on screens. As a result, they are widely used in various outdoor display scenarios.
Installing JYLED’s DIP LED modules on outdoor billboards enables ultra-high brightness and contrast, allowing product promotional images and videos to be displayed over extremely long distances, thereby expanding the advertising reach.
Outdoor large-scale sports events use DIP LED modules as the main display screens for the venue, saving on purchase costs. The large screens can display real-time scores and also show sponsor advertisements during breaks.
DIP LED module displays installed on various traffic roads offer an ultra-long viewing distance, enabling them to function both as advertising billboards and as traffic information signs.
Outdoor marketing events use DIP LED modules to install LED screens, which can display marketing presentation materials, enhance the marketing atmosphere, and encourage more potential users to quickly participate in the event.
DIP LED Module Case show
- Case show
Packaging technology: SMD LED modules use a three-in-one LED chip for surface-mount technology packaging, while DIP LED modules have three independent LED chips per pixel.
Brightness: The brightness of SMD LED modules typically ranges from 500 to 5,500 nits, while DIP LED modules can achieve brightness levels of 8,000 to 10,000 nits.
The maximum brightness of a DIP LED module can reach 12,000 nits, which requires LED chips of a certain size and high-quality driver ICs to achieve. If you have special requirements for the brightness of DIP LED modules, please feel free to contact JYLED staff to customize a solution.
JYLED’s DIP LED modules feature mature production technology and stable performance. Their large-sized LED chips and high brightness are well-suited for outdoor environments. DIP LED modules are cost-effective and high-quality, making them highly popular in the outdoor information display market.
LED modules can calculate the optimal viewing distance based on pixel pitch. Within the optimal viewing distance, the displayed image is clear and comfortable to view.
For example, the P10 DIP LED module has an optimal viewing distance of 10–20 meters, so the image will be clear when viewed from 10 to 20 meters away. Other specifications of DIP LED modules follow the same principle.
JYLED will send you 10% of the ordered quantity as spare DIP LED modules to ensure you can replace them immediately in case of unexpected issues, avoiding any delays in use. Additionally, JYLED offers a 2-year product warranty and lifetime technical after-sales support, so you need not worry about after-sales service.
