What Is a Front Service LED Module?
A front service LED module refers to an LED module that, once installed in an LED display, can be directly removed from the front of the display for maintenance and inspection. This front-access maintenance approach eliminates the need for rear maintenance access channels required in traditional rear-service designs, saving valuable installation space.

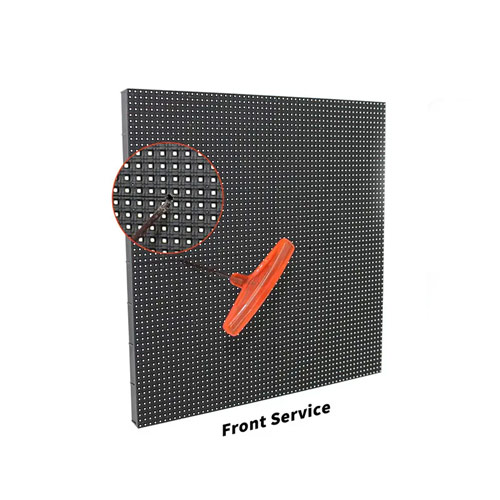

Additionally, front service LED modules typically utilize magnetic mounting or front-facing screw fasteners, making installation and disassembly exceptionally easy and convenient.
Common Indoor Front Service LED Modules
JYLED’s indoor front service LED module product line offers multiple specifications, with the following four models being highly popular in the market.

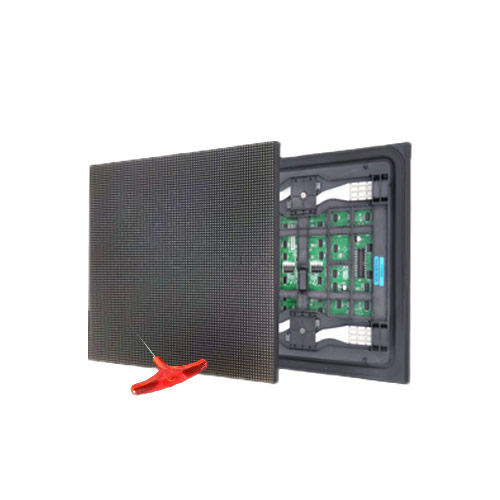

JYLED’s front service P1.8 LED module is a fine-pitch LED module delivering ultra-high-definition, finely detailed display images. It is highly suitable for premium commercial applications.

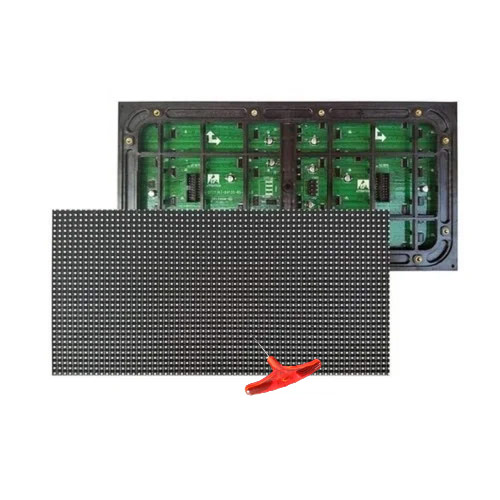

The front service P2 LED module offers high image quality and stable performance, capable of long-term, reliable display of high-quality visuals. It is commonly used in shopping mall advertising screens, monitoring room displays, and similar applications.

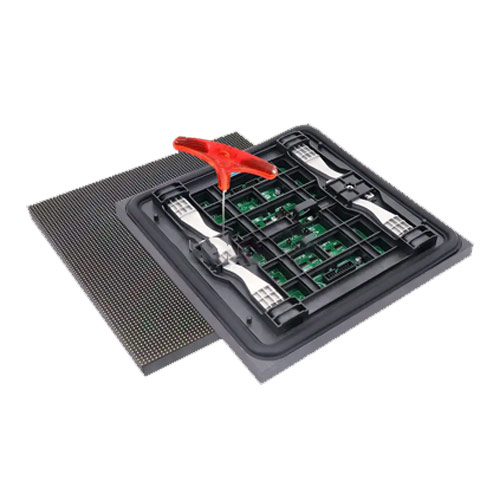

The Front Service P3 LED Module is designed for medium-sized indoor spaces. Its 3mm pixel pitch provides an optimal viewing distance of 3 to 6 meters, making it exceptionally suitable for installations in conference rooms, classrooms, and similar environments.

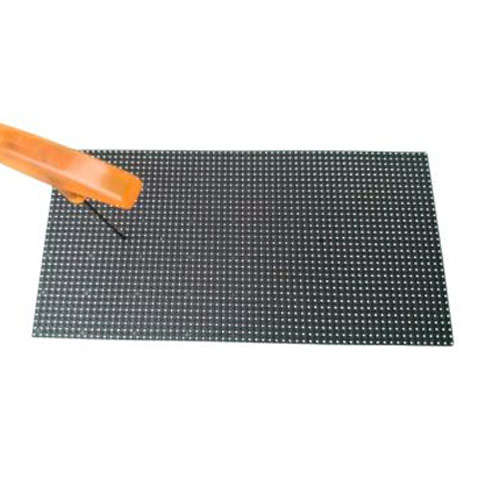

The Front Service P4 LED Module represents the most cost-effective specification among indoor LED modules. It avoids the high cost associated with fine-pitch modules while maintaining excellent display performance.
LED Displays Assembled with Front Service LED Modules
JYLED offers four popular display types assembled using front service LED modules:
Featuring adjustable curvature, this flexible LED display bends to multiple angles according to installation environments without compromising image clarity or causing distortion.
JYLED’s LED poster display is a portable, modular, and high-definition solution. Its ultra-slim and compact design makes it ideal for retail advertising applications.
Indoor LED display significantly reduces installation space requirements, enhance spatial efficiency, and offer rapid setup with convenient maintenance access.
Outdoor LED display are suitable for non-oversized installations. For large-scale outdoor LED display, rear maintenance access remains essential.
Front Service LED Module Features
JYLED’s front service LED modules deliver vibrant visuals with effortless installation and maintenance, significantly reducing labor costs.
Utilizing premium driver ICs, JYLED’s front service LED modules achieve refresh rates exceeding 3840Hz. With rich brightness gradations and a wide color gamut, they deliver crisp, vibrant, and fluid visuals.
Rated IP65 for outdoor use, these modules withstand extreme temperatures and heavy rainfall. They operate reliably under harsh conditions, demonstrating outstanding durability.

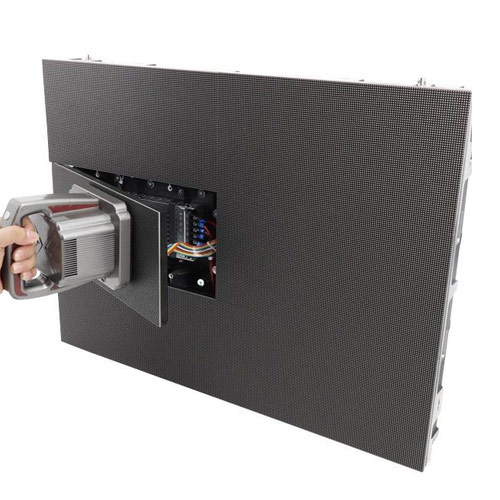

When a display fault occurs in the front service LED module, you can visually identify the faulty module and remove it directly from the front. This allows for inspection and repair of internal components and circuits.
JYLED subjects all front service LED modules to aging tests before shipment. This process eliminates defective units with uneven brightness, enhances the display reliability of qualified products, and reduces light decay over extended LED module usage.
JYLED’s front service LED modules feature uniformly flat surfaces. After installation, seams become virtually imperceptible, while consistent LED brightness ensures exceptional panel integrity.
Highly integrated with multiple components, these modules boast a slim profile. Installation requires no rear maintenance access, significantly conserving space.
JYLED's Front Service LED Modules Support Customization Across Multiple Specifications
JYLED’s front service LED modules are primarily categorized into indoor and outdoor types. Indoor-installed front service LED modules typically feature pixel pitches ranging from 1.2 to 4mm, brightness levels between 500 and 1000 nits, and an optimal viewing distance of 1 to 100 meters.
Outdoor front service LED modules feature pixel pitches ranging from 2.9 to 10mm, brightness levels between 4500 and 10000 nits, and an optimal viewing distance of 2 to 100 meters.
Overall, JYLED’s front service LED modules offer flexible customization across multiple specifications，including pixel pitch, brightness, refresh rate, and cabinet material，to meet your specific requirements. For inquiries or pricing details, click the button below to contact JYLED staff and receive a tailored solution and quotation.
JYLED's Front Service LED Module Features a User-Friendly Cabinet Design
When assembled into LED cabinets, JYLED’s front service LED modules utilize metal cabinet enclosures. These metal LED cabinet enclosures are waterproof, fireproof, and heat-resistant, offering physical impact resistance. Once installed, they effectively protect the front service LED module from environmental damage.
Additionally, cabinets assembled with front service LED modules achieve high integration, with all critical components accessible for front-end maintenance. After removing the module from the front, you can clearly see components like the power supply box and receiver card, making fault testing and maintenance straightforward and convenient.
JYLED's Front Service LED Modules Lead the Chinese Market in Quality!
JYLED’s front service LED modules feature a lightweight, simple structure for easy installation and maintenance. Production strictly adheres to international quality certification systems, with all modules certified to CE, RoHS, and FCC standards. Their exceptional product stability ensures reliability in both indoor and outdoor environments, withstanding diverse climatic conditions.
JYLED maintains a long-term, deep partnership with Nationstar, utilizing Nationstar LED chips to manufacture front service LED modules. The brightness, color accuracy, and stability of these LED chips are globally unmatched, ensuring long-term, stable, high-quality light emission.
Welcome to order front service LED modules from JYLED. You will receive the highest quality, most competitive pricing, most attentive service, and the longest-lasting after-sales support.
Application Scenarios for Front Service LED Modules
Multiple pixel pitch specifications provide front service LED modules with an exceptionally wide range of image clarity options, making them suitable for diverse scenarios.
Retail spaces are often compact. Installing displays assembled with front service LED modules to broadcast product advertisements and promotions saves significant space.
Installing JYLED front service LED module displays in stadiums enables real-time score tracking or live event broadcasts.
Mounting front service LED module information signs or billboards along roads ensures high visibility through bright illumination, maximizing attention from drivers and pedestrians.
Trade shows utilize LED poster screens made with JYLED’s front service LED modules. These screens can be conveniently moved throughout exhibition spaces, expanding product display reach and attracting more potential customers.
Front Service LED Modules Case show
- Case show
Front service LED modules are ideal for installations with limited space where rear maintenance access is impractical. They’re also perfect if you want to reduce labor costs for future maintenance and prefer simpler installation and upkeep of your LED display.
Front service LED modules feature simplified installation—typically via magnetic attachment or front-side screw fastening—drastically reducing labor time and costs.
Front service LED modules incorporate built-in circuit boards. After assembling them into cabinets, modules can be interconnected via hard connections (where modules link circuits through interfaces) or soft connections (where modules connect via cables). Subsequent cabinet-to-cabinet signal and circuit transmission also relies on cabling.
Repairability at home depends on the encapsulation technology. Modules using common SMD technology can be maintained at home, while those employing COB, GOB, or similar technologies require factory return for repair.
After placing your order, JYLED’s front service LED modules typically ship within 7 days. Delivery time depends on your chosen shipping method:
– Air freight: 3–7 days
– Sea freight: 15–30 days
