Why Choose JYLED Outdoor LED Module?
In terms of production capacity, JYLED operates two manufacturing facilities equipped with eight fully automated production lines, capable of producing tens of thousands of outdoor LED modules daily. This ensures timely delivery and enhances your satisfaction.
In terms of quality, JYLED employs precision machinery to rigorously inspect outdoor LED modules through standardized testing procedures, eliminating products with defective pixels or damage to deliver high-quality modules.
Regarding service, all purchasers of JYLED outdoor LED modules receive lifetime complimentary technical support. We assist in resolving challenges related to module splicing and installation, saving you time and effort.
Common Outdoor LED Module Models from JYLED
There are numerous outdoor LED module models available, and JYLED commonly offers the following 8 types. For inquiries or customization of other models, please contact JYLED. We will provide you with a satisfactory outdoor LED module solution.

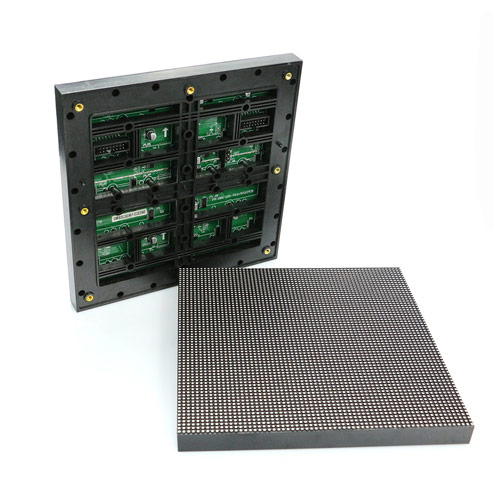

The P2.5 outdoor LED module is constructed using SMD1415 technology, featuring a relatively small pixel pitch. It delivers excellent close-up viewing quality in outdoor environments.

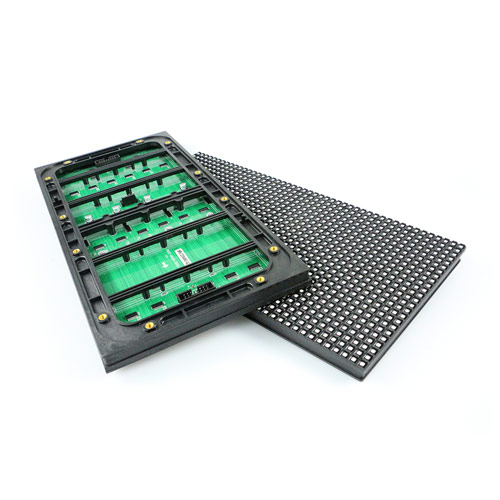

The P3 outdoor LED module offers a resolution of 64×64 with a pixel density of 4096, providing impressive clarity and highly detailed visual content.

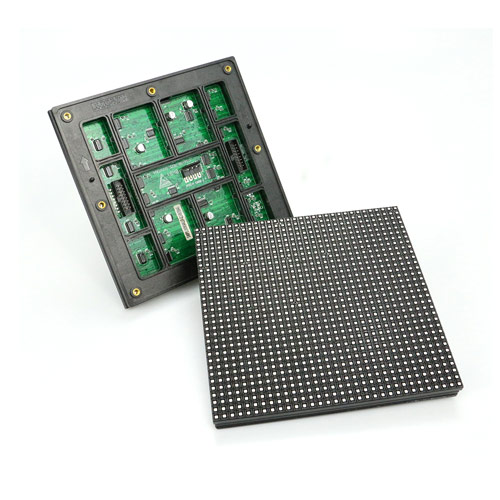

The P3.33 outdoor LED module measures 200*200mm, facilitating easier assembly into 1:1 aspect ratio dimensions and offering greater flexibility in screen aspect ratio selection.

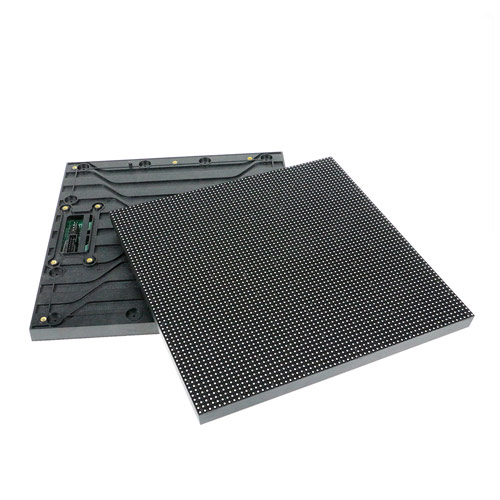

The P4 outdoor LED module utilizes SMD 1921 technology and boasts exceptional waterproofing, ensuring stable long-term operation even in high-humidity environments.

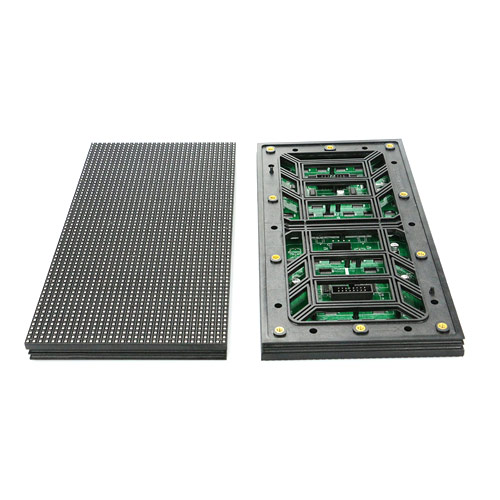

The P5 outdoor LED module features a HUB75 interface type, offering strong compatibility for connection with various control cards to facilitate data transmission and reception.
This outdoor LED module has a 6mm pitch between adjacent LED chips, delivering a visually impactful viewing experience within a 6-8m range.
The P8 outdoor LED module utilizes SMD 3535 LED chips, delivering brightness levels between 5500 and 10000 nits for outstanding visibility and readability.
The P10 outdoor LED module features a larger pixel pitch, enabling assembled screens to deliver exceptional long-distance viewing effects from 10 meters away.
Outdoor LED Module Components
The composition of outdoor LED modules is relatively simple, primarily constructed using the following components:
LED ChipsLED chips are a crucial component of outdoor LED modules. JYLED typically utilizes renowned brands such as Nationstar or Kinglight for its outdoor LED modules, ensuring stable and uniform luminous performance.
PCB Circuit BoardThe PCB circuit board independently controls LED bead illumination and IC chip operation, enabling outdoor LED modules to display exceptional visuals. Its surface is coated with a triple-proof coating providing waterproofing, dustproofing, and corrosion resistance.
IC ChipThe IC chip maintains stable current flow to the LED chips. JYLED typically employs IC models like ICN2037 or ICN2038s in its outdoor LED modules, ensuring excellent refresh rates and operational stability.
Waterproof GasketJYLED’s outdoor LED modules incorporate a white rubber waterproof gasket internally. This gasket blocks water ingress and dust penetration, safeguarding internal components and enhancing the module’s water resistance.
CoverThe cover assembly of outdoor LED modules is taller than the LED chips themselves. Its larger, thicker design provides impact resistance and UV protection, effectively shielding the LED chips.
Features of JYLED Outdoor LED Modules
JYLED utilizes premium LED chips and advanced LED technology to manufacture outdoor LED modules, achieving peak brightness exceeding 10,000 nits. This ensures vivid display visuals even in low-visibility or high-glare environments.
Constructed with premium materials, JYLED outdoor LED modules demonstrate exceptional durability. They operate reliably in harsh conditions including high temperatures, heavy rain, and snow, with a lifespan of 100,000 hours for continuous all-weather operation.
Constructed with IP65-rated materials and processes, JYLED outdoor LED modules incorporate waterproof gasket assemblies. This design ensures reliable operation even during torrential downpours, delivering exceptional water resistance and longevity.
JYLED’s outdoor LED modules feature 16-bit gray scale and over 60,000 shades of brightness variation from black to white. This delivers balanced brightness details and natural color transitions for superior image quality.
Comprising red, green, and blue LED chips, these outdoor modules feature 8 color channels and 167,216 distinct color combinations, delivering full-color visuals that closely replicate the real world.
JYLED outdoor LED modules maintain stable operation at an average power consumption of 280 ㎡/W and a maximum of 800 ㎡/W, minimizing electricity costs while ensuring reliable performance.
LED Packaging Technology for Outdoor LED Modules
JYLED utilizes either SMD LED technology or DIP LED technology to manufacture outdoor LED modules. Outdoor LED modules produced with SMD LED technology offer multiple pixel pitch options, delivering richer colors and more layered visual effects.
Outdoor LED modules using DIP LED technology deliver exceptionally high brightness exceeding 10,000 nits. Additionally, DIP LED technology enhances durability, ensuring stable operation in harsh environments.
Seamless Replacement Between Identical Sizes
Outdoor LED modules from the same production batch by JYLED maintain consistent module dimensions and height.
Parameters like color accuracy, contrast, and brightness exhibit less than 5% variation, ensuring assembled screens show no noticeable differences. This facilitates effortless replacement and seamless splicing of outdoor LED modules.
Color Capabilities of Outdoor LED Modules
Outdoor LED modules are categorized by color capability: monochrome, dual-color, and full-color.
Monochrome outdoor LED modules, as the name suggests, are manufactured using LED chips of a single color. They can only display simple graphics such as numbers, text, and time, and are typically used for creating outdoor LED signs and running LED display boards.
JYLED’s dual-color outdoor LED modules are typically constructed using red and green LED chips, enabling the mixing of multiple colors to display relatively rich and vibrant text and graphic information.
Full-color outdoor LED modules are crafted using RGB technology, delivering 16-bit color depth and 160,000 color variations to produce vivid and intricate dynamic visuals.
Types of JYLED Outdoor LED Modules
Based on manufacturing materials, outdoor LED modules come in two types: conventional outdoor LED modules and flexible outdoor LED modules.
Conventional outdoor LED modules are made from rigid materials, offering excellent durability and stability. They can be assembled into screens with various aspect ratios.

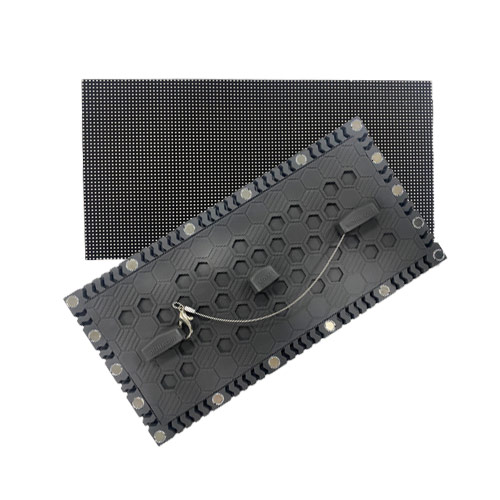

Flexible outdoor LED modules are crafted from flexible materials, allowing minor bending to form creative LED displays like spheres or rings.
Additionally, they feature a sealed rear cover design and suspension ropes to effectively protect the modules and prevent detachment.
Control Methods for Outdoor LED Modules
There are two control methods for outdoor LED modules: synchronous control and asynchronous control. Synchronous control primarily uses Ethernet cables to connect the control card of the outdoor LED module to a computer, enabling data and signal transmission to achieve close-range control.
Asynchronous control primarily utilizes 4G, Wi-Fi, and other signal methods, enabling remote control of outdoor LED modules via mobile phones or computers. For controlling multiple LED modules, intelligent cluster control of JYLED outdoor LED modules can be achieved through a server.
Application Scenarios for Outdoor LED Modules
Outdoor LED modules have extensive applications. To help you better select and utilize them, we outline common scenarios:
JYLED outdoor LED modules for outdoor advertising deliver excellent visibility and readability in high-visibility environments. These durable outdoor LED modules provide long-term economic benefits.
JYLED’s outdoor LED modules display scores, team information, highlights, live broadcasts, and sponsor advertisements during sporting events. Their exceptional long-distance visibility and vibrant visuals deliver an outstanding viewing experience for spectators.
On highways, outdoor LED modules display traffic information such as directional signage, location names, weather conditions, and road ahead status. This enables drivers to prepare for lane changes or deceleration in advance, ensuring driving safety.
Outdoor LED modules at bus stops primarily display real-time bus locations, route numbers, and schedules. This empowers passengers to plan ahead and prepare for boarding, reducing the likelihood of missing or boarding the wrong bus.
Factors Affecting Outdoor LED Module Pricing
Outdoor LED module pricing varies based on several factors. So, what are the primary factors affecting outdoor LED module prices? Let’s explore them together!
The brightness level of outdoor LED modules depends on the brand of LED chips used by JYLED. Modules manufactured with Kinglight LED chips offer excellent cost-performance. Modules using Nationstar LED chips deliver superior overall performance.
The refresh rate of JYLED outdoor LED modules is directly proportional to their price. Higher refresh rates require superior IC chips and more consumables, driving up costs. Conversely, lower refresh rates reduce manufacturing expenses, lowering the price.
The pixel pitch of outdoor LED modules is closely tied to their price. Modules with a smaller pixel pitch require a greater number of LED chips, making them more expensive. Conversely, modules with a larger pixel pitch use fewer LED chips, resulting in a lower price.
As mentioned above, outdoor LED modules are manufactured using either SMD or DIP technology. Modules produced with SMD technology can be assembled into high-performance LED screens. Those made with DIP technology offer a higher cost-performance ratio.
Outdoor LED modules Case show
- Case show
Placing outdoor LED modules in a suitable environment with temperatures between 10°C and 40°C and humidity levels between 10% and 60% ensures the assembled screen operates at peak performance and extends its service life.
No. JYLED strictly controls the quality of outdoor LED modules and employs multi-layered packaging to ensure products arrive undamaged.
JYLED offers various sizes, including: 320*160mm, 160mm*160mm, 192mm*192mm, 250mm*250mm, and more. For inquiries or custom sizing, contact JYLED for tailored solutions and satisfactory responses.
