With over 95% transparency, the transparent LED film display seamlessly blends into the scene
The strong penetrative PCB construction enables this high level of transparency. When the transparent LED film display is activated, its vibrant video effects effectively attract passersby’s attention, increasing foot traffic and boosting sales performance to new heights.
Transparent LED Film Display Related Products
Composed of transparent LED panels, this LED video wall can excellently showcase vibrant visuals while also serving to beautify and decorate walls.
A technologically advanced product, the holographic invisible display screen doesn’t have a box and can showcase 3D holographic effects, typically used in indoor settings.
One of the most common products in the transparent series, it comes with a specialized transparent display box, making it heavier overall compared to transparent LED film displays.

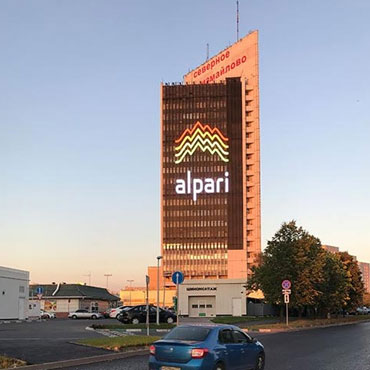

Similar in appearance to transparent LED film displays, but with significantly larger pixel pitches, reaching up to 120mm, making it the LED display screen with the largest pixel pitch among all.
Advantages of Transparent LED Film Display
The transparent LED film display is designed to be ultra-thin and transparent, so its screen thickness is less than 3mm.
The total weight, including the screen and accessories, is only 2kg. Without accessories, the screen itself weighs around 300g.
Without a cabinet, the transparent LED film display is even more transparent than most transparent displays.
It can be easily affixed to various positions such as glass, doors, and windows, making the installation process extremely convenient and straightforward.

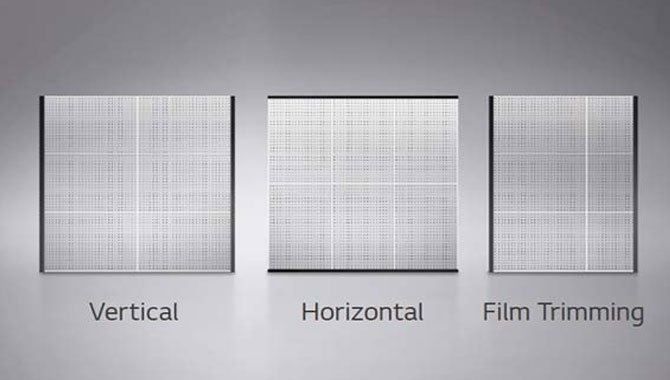

Flexible Layout and Expansion
Users can freely layout the transparent LED film display according to their own scenes. By adding more film LED displays, horizontal or vertical expansion can be achieved.
For some special areas, such as the edges of doors and windows, which may not have regular shapes, cutting can also be done without affecting the overall use.
Creative Design for More Surprises
Unlike most LED displays, flexible transparent film LED displays are highly resilient and can be bent at will.
This flexibility allows them to be used on flat or curved glass surfaces, as well as to be customized with creative buildings, providing space designers with more creative inspiration.
Multiple Options for Pixel Pitch and Brightness
Transparent LED film displays come in 6.25mm, 8mm, 10mm, 15mm, and 20mm pixel pitches, with brightness ranging from 2000 to 4000 nits.
This brightness not only ensures a clear picture but also makes it easier to attract the attention of passersby.
Transparent LED Film Display Has Better Quality And Stronger Performance
Customers can choose the appropriate LED thin film display model according to the application area to achieve the best viewing effect. In addition, due to the good brightness uniformity of the LED thin film display screen, it can well attract the attention of passers-by.

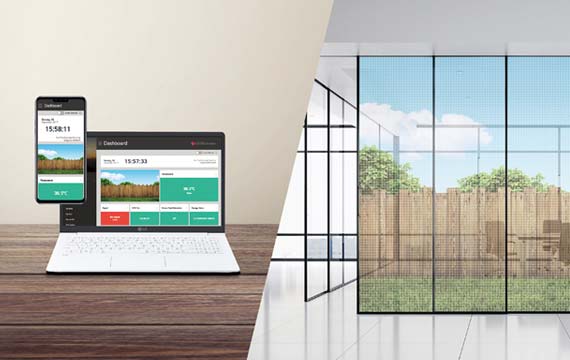

After connecting to the LAN or the Internet, you can control and set content in real time. This function is especially important and practical when you need to replace multiple or large-area transparent LED film displays at the same time.
Transparent LED Film Display For Different Scene
New models or car discount information can be displayed on the glass using transparent LED film displays to attract passersby.
Since the size of jewelry is very small and the details are difficult to see, we can use LED film displays to enlarge and display jewelry information to customers, making it easier for customers to understand product information.
The transparent LED film display can beautify the glass by showing wonderful pictures, making the original ordinary glass show a stunning appearance.
- Gallery
- Product Parameter
- Product Document
| Model | P3.9-7.8 | P7.8-7.8 | P5.2-10.4 | P10.4-10.4 | P15.6-15.6 | P20.8-20.8 | ||
| Pixel Pitch | 3.9 x 7.8mm | 7.8 x 7.8mm | 5.2 x 10.4mm | 10.4 x 10.4mm | 15.6 x 15.6mm | 20.8 x 20.8mm | ||
| Pixel Density | 32256dot/㎡ | 16384dot/㎡ | 18432dot/㎡ | 9216dot/㎡ | 4096dot/㎡ | 2304dot/㎡ | ||
| LED Lamps | SMD1921 | |||||||
| Color Configuration | SMD 3in1 1R1G1B | |||||||
| Module Size | 1500 x 62.5mm | 1687.5 x 62.5mm | 1000 x 62.5mm | 1500 x 62.5mm | 1593.7 x 62.5mm | 1500 x 62.5mm | ||
| Module Resolution | 378 × 8dots | 216 × 8dots | 192 × 6dots | 144 × 6dots | 102 × 4dots | 72 × 3dots | ||
| Module Qty | W1 x H8 | |||||||
| Permeability | ≥56% | ≥48% | ≥70% | ≥60% | ≥78% | ≥82% | ||
| Weight/㎡ | ≤7kg | |||||||
| Brightness | 3500-6000cd/㎡ | 4000-5000cd/㎡ | 3500-6000cd/㎡ | 3000-3500cd/㎡ | ||||
| Max Power Consumption | 500W/㎡ | |||||||
| Average Power Consumption | 170W/㎡ | |||||||
| Refresh Rate | 1920Hz/3840Hz | |||||||
| Grey Level | 16Bit | |||||||
| Color Temperature | 3200K-8500K | |||||||
| View Angle | Horizontal 160° Vertical 140° | |||||||
| Screen Control Method | PC or Mobile Phone | |||||||
| IP Rating | IP30 | |||||||
| Input Voltage | AC110V-220V,50Hz-60Hz | |||||||
| Temperature-operating | -20℃-50℃ | |||||||
| Life Span | ≥100,000 Hours | |||||||
Since the transparent LED film display has no cabinet, it is much lighter than the transparent LED display screen.
However, the brightness of the transparent LED film display is not as high as that of the transparent display, so both have their own advantages, and it is best to choose the one that suits you.
It’s possible, but it’s not recommended. Because cutting off a part may cause the lamp bead to break, and the cutting gap will cause the internal circuit to be exposed to the outside for a long time, which may affect the use of the product and may also cause damage to the product.
Generally, the brightness has been set at the factory. It is not recommended to increase the brightness, otherwise it may cause the product to malfunction.
Depending on the selected dot spacing, the brightness that can be achieved is different. The highest brightness is a transparent LED film display with a pixel pitch of 30mm, and its brightness can reach 5000nit.
Its control method is the same as the conventional LED display control method.
Although we see many transparent film LED displays installed on glass, they can also be suspended or vertically mounted.
The application areas of the two are slightly different. The holographic invisible display screen has a smaller pixel pitch, making it suitable for close-range decoration, while the transparent film LED display has a larger pixel pitch, making it suitable for long-distance or larger buildings.
Although both have certain bending characteristics, transparent film LED displays are lighter and more flexible due to the lack of a cabinet, making them more suitable for areas with greater bending.

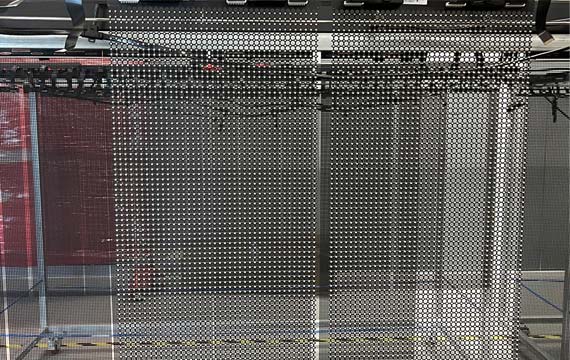

Depending on the selected pixel pitch and the displayed area, the ideal viewing distance for transparent LED film displays varies. If a P20 pixel pitch transparent LED film display is spliced into 1 square meter, the viewing distance is between 20-50 meters.
Transparent LED film displays use the Nova control system.
